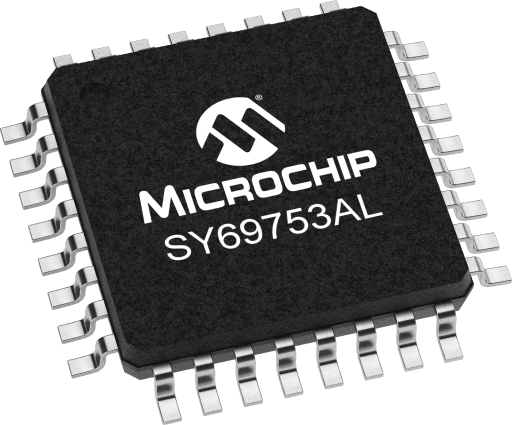

Microchip SY69753ALHG

Manufacturer No:

SY69753ALHG

Manufacturer:

Microchip

Package:

32-TQFP Exposed Pad

Description:

3.3V 155 Mbps CDR

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY69753ALHG information

Microchip SY69753ALHG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY69753ALHG.

Type
Parameter

Part Type
Clock and Data Recovery

Power Supply (V)
3.3

Download datasheets and manufacturer documentation for Microchip SY69753ALHG.

Data Sheets:

854b05cc7997775bb6880a5310a070fd.pdf

User Guide:

6b5fcd7a574a74c96142ee6d19901df3.pdf

The SY69753AL is a complete Clock Recovery and Data Retiming integrated circuit for OC-3/STS-3 applications at 155Mbps NRZ. The device is ideally suited for SONET/SDH/ATM applications and other high-speed data transmission systems. Clock recovery and data retiming is performed by synchronizing the on-chip VCO directly to the incoming data stream. The VCO center frequency is controlled by the reference clock frequency and the selected divide ratio. On-chip clock generation is performed through the use of a frequency multiplier PLL with a byte rate source as reference. The SY69753AL also includes a link fault detection circuit.

3.3V power supply
SONET/SDH/ATM compatible
Clock and data recovery for 125Mbps/155Mbps NRZ data stream
Two on-chip PLLs: one for clock generation and another for clock recovery
Selectable reference frequencies
Differential PECL high-speed serial I/O
Line receiver input: no external buffering needed
Link fault indication
100k ECL compatible I/O
Industrial temperature range (-40°C to +85°C)
Lower power: fully compatible with Micrel's SY87701V, but with 30% less power
Available in 32-pin ePad-TQFP
