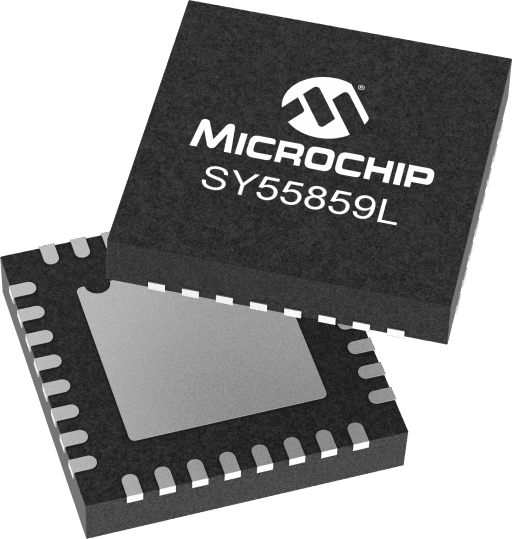

Microchip SY55859LMG

Manufacturer No:

SY55859LMG

Manufacturer:

Microchip

Package:

32-VFQFN Exposed Pad, 32-MLF®

Description:

Dual 2x2 CML Crosspoint Switch

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY55859LMG information

Microchip SY55859LMG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY55859LMG.

Type
Parameter

Description
Dual 2x2 Crosspoint Switch 2.7 Gbps

Input
CML

Output
CML

Supply Voltage
3.3

Icc (mA)
160

Max Within Device Skew (ps)
15

OE
False

Input Mux
True

Max Prop Delay (ps)
275

Download datasheets and manufacturer documentation for Microchip SY55859LMG.

Data Sheets:

f5adafa9031fc39116e12856dd7144b5.pdf

User Guide:

c526a4949c2cf75bd508cca2d9d93be2.pdf

The SY55859L is a dual CML 2x2 crosspoint switch optimized for high-speed data and/or clock applications (up to 3.2Gbps or 2.7GHz) where low jitter and skew are critical. This device is pin-for-pin, plug-in compatible to the MAX3840. Each 2x2 of the SY55859L routes any input to any output, and thus can distribute or multiplex a clock or data stream. The I/O architecture is fully differential and CML compatible. Both inputs and outputs are optimized for 50 transmission lines. The inputs (DA 0-1 and DB 0-1) are internally terminated with 50 , thus eliminating external termination, and the outputs (QA0-1 and QB0-1) include 50 source termination. Furthermore, a power-saving output enable feature is provided which powers-down unused outputs.The SY5859L operates from a +3.3V ±10% supply, and is guaranteed over the industrial (-40°C to +85°C) temperature range. It is available in a 32-pin (5mm x 5mm) QFN package.For applications that require either lower voltage operation or a more flexible input interface (for applications such as AC-coupled LVPECL inputs), consider the SY55858U.

Pin-for-pin, plug-in compatible to the MAX3840
Supply voltage operation: +3.3V±10%
Low Jitter: -2psRMS random jitter -5psPP deterministic jitter
Power saving output disable feature
15ps channel-to-channel skew
Fast CML outputs: <100ps tr/tf
Available in a small (5mm x 5mm) 32-pin EPAD-QFN package

User Guide
