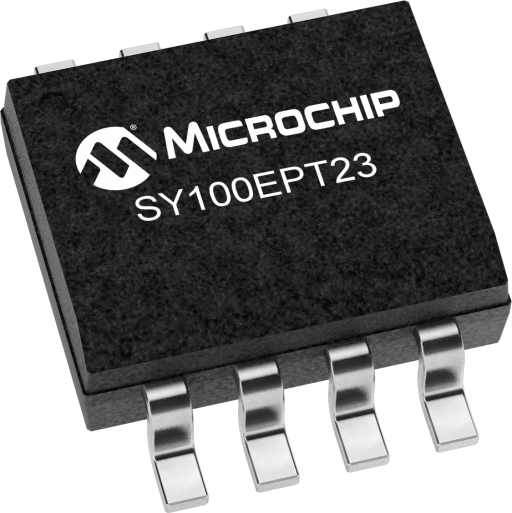

Microchip SY100EPT23LZG
Microchip SY100EPT23LZGMicrochip SY100EPT23LZG

Microchip SY100EPT23LZG

Manufacturer No:

SY100EPT23LZG

Manufacturer:

Microchip

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

dual, differential LVPECL-to-LVTTL translator

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY100EPT23LZG information

Microchip SY100EPT23LZG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY100EPT23LZG.

  • Type
  • Parameter
  • Input
  • LVPECL
  • Output
  • LVTTL
  • Supply Voltage
  • 3.3
  • Max Freq (GHz)
  • 0.275
  • Icc (mA)
  • 30
  • Max Within Device Skew (ps)
  • 300
  • OE
  • False
  • Input Mux
  • False
  • Max Prop Delay (ps)
  • 2500

Download datasheets and manufacturer documentation for Microchip SY100EPT23LZG.

Application Notes:

Data Sheets:

The SY100EPT23L is a dual differential LVPECL-to-LVTTL translator. Because LVPECL (Low Voltage Positive ECL) levels are used, only +3.3V and ground are required. The tiny 8-pin MSOP and dual-gate design of the EPT23L makes it ideal for applications which require the translation of a clock and data signal. The EPT23L is available in only the ECL 100K standard. Since there are no LVPECL outputs or an external VBB reference, the EPT23L does not require both ECL standard versions. The inputs can accept 10K
voltage levels and any standard differential LVPECL input referenced from a VCC of +3.3V.

    • 3.3V power supply
    • 1.9ns typical propagation delay
    • Maximum frequency > 275MHz
    • Differential LVPECL inputs
    • 24mA LVTTL outputs
    • Flow-through pinouts
    • Internal input resistors: pulldown on D, pulldown and pullup on /D
    • Q output will default LOW with inputs open or at Ground
    • Available in 8-pin MSOP and SOIC packages
