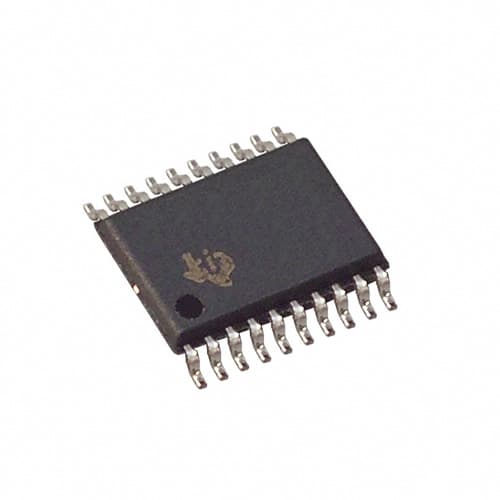

TI TPS71025PWRG4

Manufacturer No:

TPS71025PWRG4

Manufacturer:

Package:

TSSOP

Description:

Fixed 0.65mm PMIC 20 TSSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPS71025PWRG4 information

TI TPS71025PWRG4 technical specifications, attributes, parameters and parts with similar specifications to TI TPS71025PWRG4.

Type
Parameter

Package / Case
TSSOP

Surface Mount
YES

Number of Pins
20

Packaging
Tape and Reel

JESD-609 Code
e4

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
125°C

Min Operating Temperature
0°C

Subcategory
Other Regulators

Packing Method
TAPE&REEL (LEFT)

Technology
PMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.65mm

Pin Count
20

Number of Outputs
1

Output Type
Fixed

Max Output Current
500mA

Power Dissipation-Max
700mW

Power Dissipation
700mW

Current - Output
500mA

Quiescent Current
280μA

Accuracy
2 %

Max Output Voltage
2.5V

Voltage - Output
2.5V

Output Voltage 1
2.5V

Min Input Voltage
2.97V

Current - Input Bias
292μA

Max Input Voltage
10V

Dropout Voltage
330mV

Dropout Voltage1-Nom
0.5V

Min Output Voltage
2.5V

Voltage Tolerance-Max
2%

Output Voltage Accuracy
2 %

Line Regulation-Max (%/V)
0.029%

Length
6.5mm

Width
4.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI TPS71025PWRG4.

TPS71025PWRG4 Description

TPS71025PWRG4 is a type of low-dropout voltage regulator. The PMOS device is used as a replacement for the typical pnp pass transistor, as a result, this regulator is able to offer an order of magnitude reduction on both dropout voltage and quiescent current over conventional LDO performance. The extremely low dropout voltage is directly proportional to the output current since the PMOS device behaves as a low-value resistor. The low quiescent current remains independent of output loading since the PMOS pass element is a voltage-driven device.

TPS71025PWRG4 Features

2.5 V fixed-ouput regulator

Very low-dropout (LDO) voltage of 57 mV

Low quiescent current

Low sleep-state current

TPS71025PWRG4 Applications

Elevator

Post and telecommunications

Medical machinery
