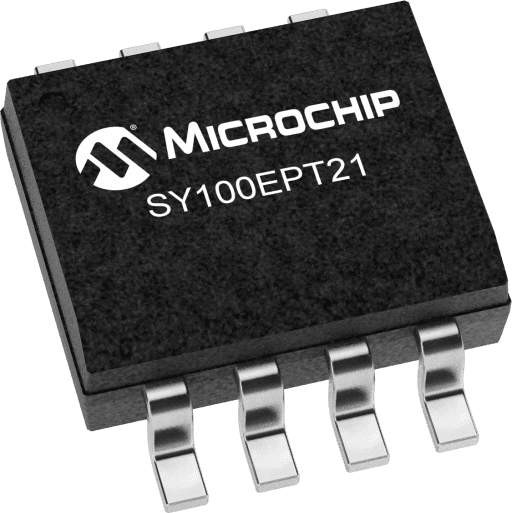

Microchip SY100EPT21LKG-TR
Microchip SY100EPT21LKG-TRMicrochip SY100EPT21LKG-TR

Microchip SY100EPT21LKG-TR

Manufacturer No:

SY100EPT21LKG-TR

Manufacturer:

Microchip

Package:

8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Description:

single, differential LVPECL-to-LVTTL translator

User Guide
