ST TDA7496SA

Manufacturer No:

TDA7496SA

Manufacturer:

Package:

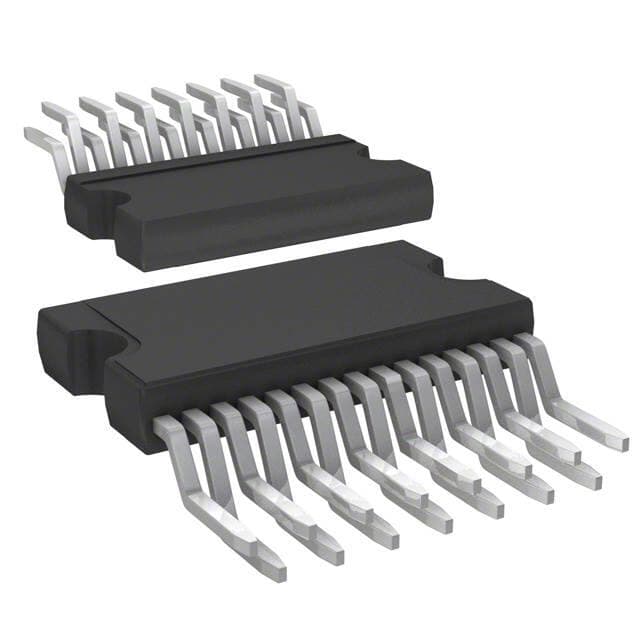

Clipwatt-15 (Vertical, Bent and Staggered Leads)

Description:

5.5W W Audio Amplifiers 16W W 32V V 15 pins Clipwatt-15 (Vertical, Bent and Staggered Leads)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TDA7496SA information

ST TDA7496SA technical specifications, attributes, parameters and parts with similar specifications to ST TDA7496SA.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Clipwatt-15 (Vertical, Bent and Staggered Leads)

Number of Pins
15

Operating Temperature
0°C~70°C TA

Packaging
Tube

JESD-609 Code
e3

Feature
Depop, Mute, Short-Circuit and Thermal Protection, Standby, Volume Control

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
15

ECCN Code
EAR99

Type
Class AB

Terminal Finish
Tin (Sn)

HTS Code
8542.39.00.01

Subcategory
Audio/Video Amplifiers

Technology
BIPOLAR

Voltage - Supply
10V~32V

Terminal Position
ZIG-ZAG

Number of Functions
1

Terminal Pitch
1.27mm

Base Part Number
TDA7496

Pin Count
15

Supply Voltage-Max (Vsup)
32V

Power Supplies
10/32V

Supply Voltage-Min (Vsup)
10V

Number of Channels
2

Power Dissipation
16W

Supply Current-Max
50mA

Voltage Gain
30dB

Power Supply Rejection Ratio (PSRR)
65dB

Max Output Power
5.5W

Max Output Power x Channels @ Load
5.5W x 2 @ 8 ?

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST TDA7496SA.

Datasheets:

stmicroelectronics-tda7496sa-datasheets-1160.pdf

TDA7496SA Overview

The package Clipwatt-15 (Vertical, Bent and Staggered Leads) contains it.Tube is the packaging method.15 terminations consist of terminating transmission lines with devices that match their characteristic impedance.Amp parts is configured wAmp partsh an output of 2-Channel (Stereo) .This electrical device has the type Class AB .In a computer or other communication device, there are 15 pins, which are pronged contacts.There is an electronic part mounted in the way of Through Hole .This electrical device is powered by 10V~32V volts.There are no channels on the device.When operating, Depop, Mute, Short-Circuit and Thermal Protection, Standby, Volume Control can be ensured.Amp parts is recommended that the operating temperature not exceed 0°C~70°C TA .In addition, it is equipped with 15 pins.Amp parts is included in Audio/Video Amplifiers .Amp parts is a member of the family TDA7496 .Amp parts is mounted in the way of Through Hole .This electronic component's maximum output power is 5.5W kWh per hour.For normal operation, the supply voltage (Vsup) should be kept above 10V .Amp parts reaches 32V when the maximum supply voltage (Vsup) is reached.The power supply is 10/32V .Amp parts is noted that the maximal supply current is 50mA .
