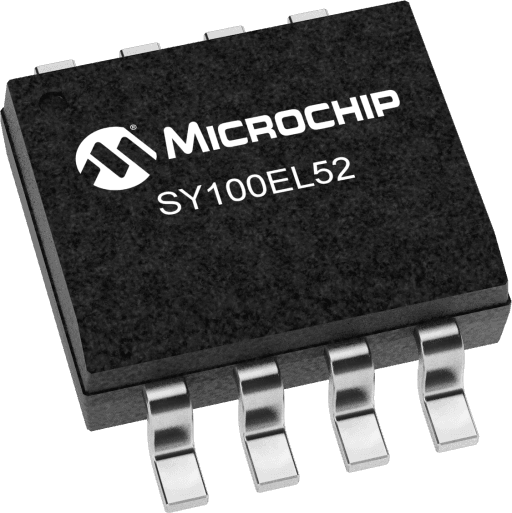

Microchip SY100EL52ZG

Manufacturer No:

SY100EL52ZG

Manufacturer:

Microchip

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

Differential Data and Clock D Flip-Flop

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SY100EL52ZG information

Microchip SY100EL52ZG technical specifications, attributes, parameters and parts with similar specifications to Microchip SY100EL52ZG.

Type
Parameter

Description
ECL Differential Data and Clock D Flip-Flop

Input
ECL

Supply Voltage
5

Max Freq (GHz)
0

Icc (mA)
0

OE
False

Input Mux
False

Number Of Outputs
0

Max Prop Delay (ps)
365

Download datasheets and manufacturer documentation for Microchip SY100EL52ZG.

Application Notes:

28e47621c3774d8713e580970ed13782.pdf

Data Sheets:

78a3368b8948deb47f997edb4b05dd52.pdf

The SY10/100EL52 are differential data, differential clock D flip-flops. These devices are functionally equivalent to the E452 devices, with higher performance capabilities. With propagation delays and output transition times significantly faster than the E452, the EL52 is ideally suited for those applications which require the ultimate in AC performance.Data enters the master portion of the flip-flop when the clock is LOW and is transferred to the slave, and thus the outputs, upon a positive transition of the clock.The differential clock inputs also allow the EL52 to be used as a negative edge triggered device.The EL52 employs input clamping circuitry so that, under open input conditions (pulled down to VEE), the outputs of the device will remain stable.

365ps propagation delay
2.0GHz toggle frequency
Internal 75kO input pull-down resistors
Available in 8-pin SOIC package
