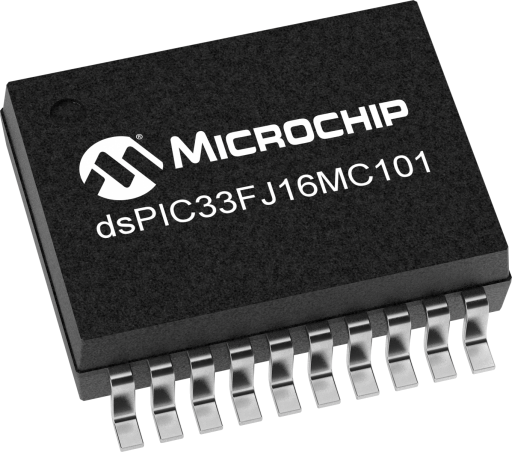

Microchip DSPIC33FJ16MC101T-E/SO

Manufacturer No:

DSPIC33FJ16MC101T-E/SO

Manufacturer:

Microchip

Package:

Description:

16 MIPS, 16KB Flash, 1KB RAM, 20 pins, Motor Control

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DSPIC33FJ16MC101T-E/SO information

Microchip DSPIC33FJ16MC101T-E/SO technical specifications, attributes, parameters and parts with similar specifications to Microchip DSPIC33FJ16MC101T-E/SO.

Type
Parameter

CPU Type
dsPIC® DSC

CPU Speed Max MHz (megahertz)
16

Program Memory Size (KB)
16

Multiple Flash Panels
No

Direct Memory Access (DMA) Channels
0

Temp. Range Min.(C°)
-40

Temp. Range Max.(C°)
125

Operation Voltage Min.(V)
3

Operation Voltage Max.(V)
3.6

Pin Count
20

Low Power
No

Number of Comparators
3

ADC Modules
1

ADC Channels
4

ADC Resolution Max
10

ADC Sampling Rate (ksps)
1100

Number of DACs
1

DAC outputs
0

Max DAC Resolution (bits)
4

Hardware RTCC
Yes

Motor Control PWM Channels
6

SMPS PWM Channels
0

Number of PWM Time Bases
2

Output Compare Channels
3

Number of CAN Modules
0

Type of CAN module Max
None

Crypto Engine
No

Quadrature Encoder Interface (QEI)
0

Segment LCD
0

LCD/Graphics Interface
No

Configurable Logic Cell Modules (CLC /CCL)
0

Peripheral Pin Select (PPS)/Pin Muxing
Yes

Download datasheets and manufacturer documentation for Microchip DSPIC33FJ16MC101T-E/SO.

An ultra low cost, high performance 16-bit motor control family of digital signal controllers featuring CTMU, MCPWMs, PPS and other advanced peripherals with low pin count and small footprint options. These devices contain extensive Digital Signal Processor (DSP) functionality with a high-performance, 16-bit microcontroller (MCU) architecture that is optimized for Motor Control Applications.

Up to 16 MIPS operation (3.0-3.6V)
Modified Harvard architecture
16-bit-wide data path
24-bit-wide instructions
16 x 16 integer multiply operations
32/16 and 16/16 integer divide operation
Two 40-bit accumulators with rounding and saturation options
Additional flexible and powerful addressing modes:
- Modulo
- Bit-reversed
Single-cycle multiply and accumulate:
- Accumulator write back for DSP operations
- Dual data fetch
Shifts for up to 40-bit data
16 x 16 fractional multiply/divide operations

Flash program memory (16 Kbytes)
Data SRAM (1 Kbyte)
Security for program Flash

6-channel 16-bit Motor Control PWM:
- Three duty cycle generators
- Independent or Complementary mode
- Programmable dead time and output polarity

Analog Peripherals:
10-bit, 1.1 Msps Analog-to-Digital Converter (ADC):
- Two and four simultaneous samples
- Up to six input channels with auto-scanning
Three Analog Comparators with programmable input/output configuration
- Up to four inputs per Comparator
Charge Time Measurement Unit (CTMU):
- Supports capacitive touch sensing for touch screens and capacitive switches (mTouch™)

Timer/Counters, up to three 16-bit timers:
- Can pair up to make one 32-bit timer
Input Capture (up to three channels)
- Capture on up, down, or both edges
- 16-bit capture input functions
Output Compare (up to two channels)
- Single or Dual 16-bit Compare mode
Hardware Real-Time Clock and Calendar (RTCC)

4-wire SPI
I2C™
UART

Flexible clock options
High-accuracy internal FRC
Power-on Reset (POR)
Power-up Timer (PWRT)
Brown-out Reset (BOR)

Single supply on-chip voltage regulator
Switch between clock sources in real time
Idle, Sleep, and Doze modes with fast wake-up

Low Pin Count: 20-pin PDIP/SOIC/SSOP
