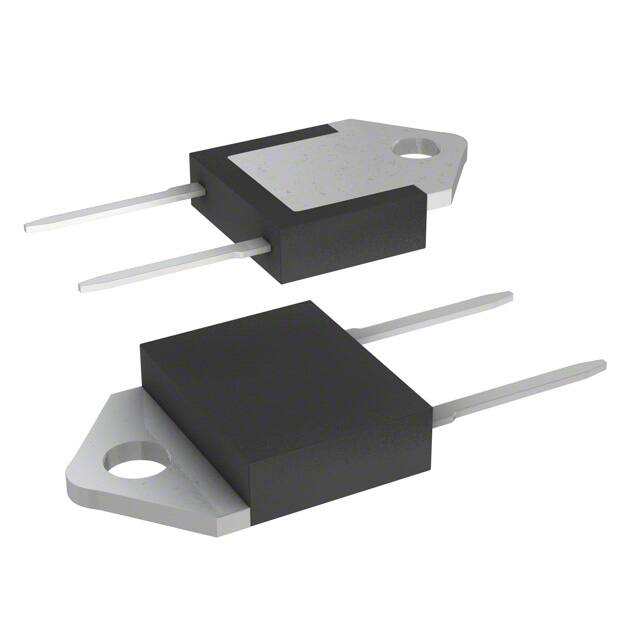

ST STTH3002PI

Manufacturer No:

STTH3002PI

Manufacturer:

Package:

DOP3I-2 Insulated (Straight Leads)

Description:

Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 1.05V @ 30A 175°C Max 20?A @ 200V 2-Termination Tube DOP3I-2 Insulated (Straight Leads) Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STTH3002PI information

ST STTH3002PI technical specifications, attributes, parameters and parts with similar specifications to ST STTH3002PI.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
8 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
DOP3I-2 Insulated (Straight Leads)

Number of Pins
2

Diode Element Material
SILICON

Packaging
Tube

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Max Operating Temperature
175°C

Min Operating Temperature
-65°C

Additional Feature
FREE WHEELING DIODE

HTS Code
8541.10.00.80

Subcategory
Rectifier Diodes

Base Part Number
STTH30

Pin Count
2

Number of Elements
1

Element Configuration
Single

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Current - Reverse Leakage @ Vr
20?A @ 200V

Voltage - Forward (Vf) (Max) @ If
1.05V @ 30A

Forward Current
30A

Operating Temperature - Junction
175°C Max

Max Surge Current
300A

Application
ULTRA FAST RECOVERY

Forward Voltage
1.05V

Max Reverse Voltage (DC)
200V

Average Rectified Current
30A

Number of Phases
1

Reverse Recovery Time
50 ns

Peak Reverse Current
20?A

Max Repetitive Reverse Voltage (Vrrm)
200V

Peak Non-Repetitive Surge Current
300A

Reverse Voltage
200V

Recovery Time
50 ns

Height
21.1mm

Length
15.5mm

Width
4.6mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST STTH3002PI.

Datasheets:

stmicroelectronics-stth3002pi-datasheets-5812.pdf

STTH3002PI Overview

Phase diode rectifier is reasonable to reverse the voltage to 200V.This device's average rectified current is zero volts.A forward current of 30A is allowed.Surge currents are limited to 300A.The datasheets show a peak reverse of 20?A, as shown in the data chart.

STTH3002PI Features

an average rectified current of 30A volts
the peak reverse is 20?A

STTH3002PI Applications

There are a lot of STMicroelectronics
STTH3002PI applications of single-phase diode rectifier.

DC motor control and drives
Battery chargers
Welders
Power converters
Reverse Polarity Protection
Ultra High-Speed Switching
Freewheeling
Polarity Protection Diode
Recirculating Diode
Switching Diode
