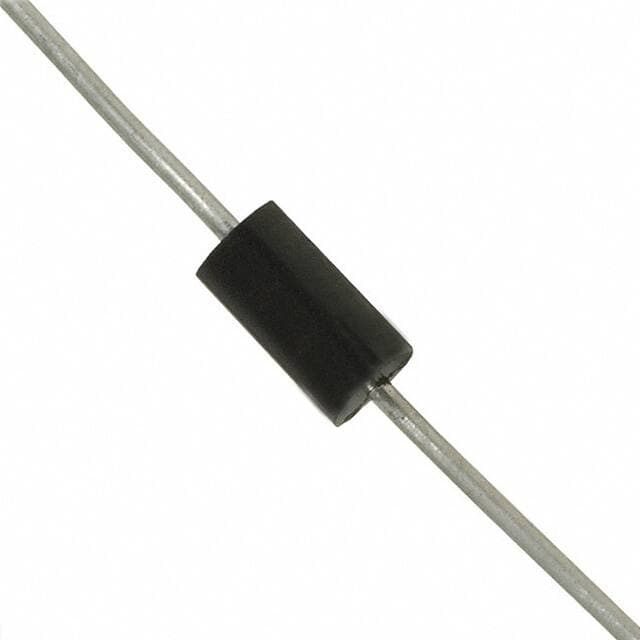

ST STTH1R02QRL
Manufacturer No:
STTH1R02QRL
Manufacturer:
Package:
DO-204AC, DO-15, Axial
Description:
Standard Diode Rectifier Fast Recovery =< 500ns, > 200mA (Io) 1V @ 1.5A 175°C Max 3?A @ 200V 2-Termination Tape & Reel (TR) DO-204AC, DO-15, Axial Through Hole
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
STTH1R02QRL information
ST STTH1R02QRL technical specifications, attributes, parameters and parts with similar specifications to ST STTH1R02QRL.
| Type | Parameter |
|---|---|
| Lifecycle Status | ACTIVE (Last Updated: 7 months ago) |
| Factory Lead Time | 8 Weeks |
| Mount | Through Hole |
| Mounting Type | Through Hole |
| Package / Case | DO-204AC, DO-15, Axial |
| Number of Pins | 2 |
| Diode Element Material | SILICON |
| Packaging | Tape & Reel (TR) |
| JESD-609 Code | e3 |
| Part Status | Active |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Number of Terminations | 2 |
| ECCN Code | EAR99 |
| Terminal Finish | MATTE TIN |
| Max Operating Temperature | 175°C |
| Min Operating Temperature | -65°C |
| Additional Feature | FREE WHEELING DIODE |
| HTS Code | 8541.10.00.80 |
| Subcategory | Rectifier Diodes |
| Terminal Form | WIRE |
| Base Part Number | STTH1 |
| Pin Count | 2 |
| Number of Elements | 1 |
| Element Configuration | Single |
| Type | Parameter |
|---|---|
| Diode Type | Standard |
| Current - Reverse Leakage @ Vr | 3?A @ 200V |
| Voltage - Forward (Vf) (Max) @ If | 1V @ 1.5A |
| Case Connection | ISOLATED |
| Forward Current | 1.5A |
| Operating Temperature - Junction | 175°C Max |
| Max Surge Current | 60A |
| Application | ULTRA FAST RECOVERY |
| Forward Voltage | 1.2V |
| Max Reverse Voltage (DC) | 200V |
| Average Rectified Current | 1.5A |
| Number of Phases | 1 |
| Reverse Recovery Time | 30 ns |
| Peak Reverse Current | 3?A |
| Max Repetitive Reverse Voltage (Vrrm) | 200V |
| Peak Non-Repetitive Surge Current | 60A |
| Reverse Voltage | 200V |
| Max Forward Surge Current (Ifsm) | 60A |
| Recovery Time | 30 ns |
| Height | 3.53mm |
| Length | 6.75mm |
| Width | 3.53mm |
| Radiation Hardening | No |
