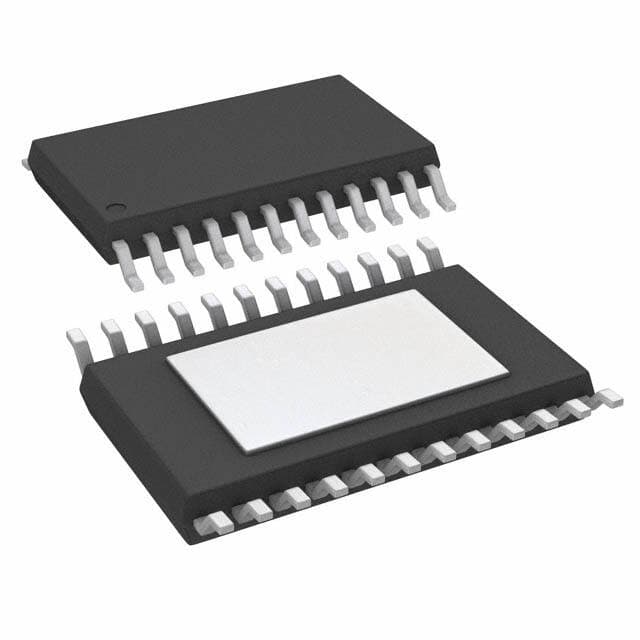

ST STP16CPC26XTR

Manufacturer No:

STP16CPC26XTR

Manufacturer:

Package:

24-TSSOP (0.173, 4.40mm Width) Exposed Pad

Description:

5V 0.65mm Gold PMIC STP16C 24 Pin 3.3V 24-TSSOP (0.173, 4.40mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STP16CPC26XTR information

ST STP16CPC26XTR technical specifications, attributes, parameters and parts with similar specifications to ST STP16CPC26XTR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
16 Weeks

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
24-TSSOP (0.173, 4.40mm Width) Exposed Pad

Number of Pins
24

Operating Temperature
-40°C~125°C TA

Packaging
Tape & Reel (TR)

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Type
Linear

Applications
Lighting

HTS Code
8542.39.00.01

Subcategory
Display Drivers

Terminal Position
DUAL

Terminal Form
GULL WING

Number of Functions
1

Supply Voltage
3.3V

Terminal Pitch
0.65mm

Base Part Number
STP16C

Number of Outputs
16

Max Supply Voltage
5.5V

Min Supply Voltage
3V

Output Current
90mA

Max Supply Current
15.3mA

Voltage - Output
20V

Topology
Shift Register

Output Current per Channel
90mA

Internal Switch(s)
Yes

Dimming
Analog

Number of Segments
16

Max Junction Temperature (Tj)
170°C

Switching Frequency
30MHz

Voltage - Supply (Min)
3V

Multiplexed Display Capability
NO

Display Mode
SEGMENT

Ambient Temperature Range High
125°C

Data Input Mode
SERIAL

Height
1.2mm

Length
7.8mm

Width
4.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST STP16CPC26XTR.

Datasheets:

stmicroelectronics-stp16cpc26ttr-datasheets-2087.pdf

stmicroelectronics-stp16cpc26xtr-datasheets-1576.pdf

stmicroelectronics-stp16cpc26xtr-datasheets-1577.pdf

stmicroelectronics-stp16cpc26xtr-datasheets-1578.pdf

STP16CPC26XTR Overview

The 24-TSSOP (0.173, 4.40mm Width) Exposed Pad package saves space on the board. These LED drivers have 16 outputs.The mounting method adopted is Surface Mount.Initially, it emerges as a Linear with high efficiency and a high degree of reliability.-40°C~125°C TA is the operating temperature and it works fine.The benefits are considerable for Lighting.For its operation, 24 terminations are designed.To form its configuration, there are 24 pins.It is possible for undetermined failures to occur if the voltage supply is lower than 3V.The number of segments is 16.Surface Mount is mounted on it.A base part number of STP16C is associated with this LED driver.As a maximum value, 5.5V is acceptable.The output voltage of this device is 20V.In addition, it can be classified as Display Drivers according to its characteristics.The system works with a minimum supply voltage of 3V in order to achieve maximum efficiency.As long as the supply current is less than 15.3mA, this device can provide high efficiency.The load is capable of receiving 90mA current.Electronic components can function properly when their switching frequency is set to 30MHz.
