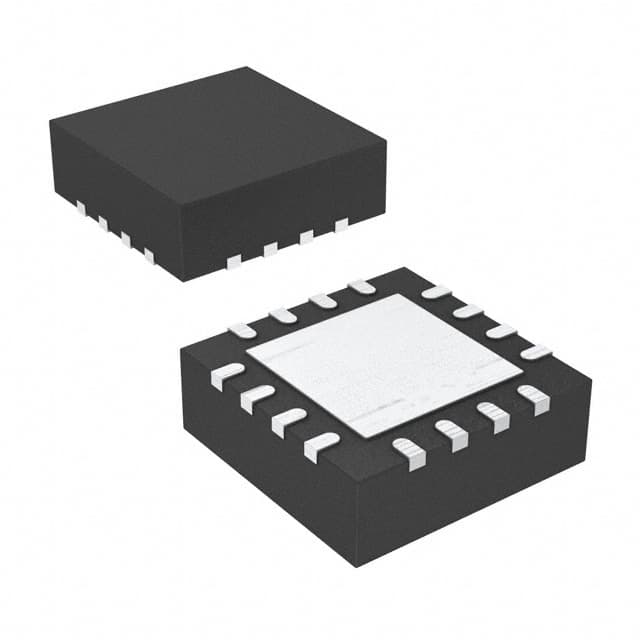

ST STODD03QTR

Manufacturer No:

STODD03QTR

Manufacturer:

Package:

16-VQFN Exposed Pad

Description:

4V~6V 16 Pin STODD03 Specialized Power Management ICs 2 Outputs

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STODD03QTR information

ST STODD03QTR technical specifications, attributes, parameters and parts with similar specifications to ST STODD03QTR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
14 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-VQFN Exposed Pad

Number of Pins
16

Operating Temperature
-25°C~125°C

Packaging
Cut Tape (CT)

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Applications
Optical

Voltage - Supply
4V~6V

Base Part Number
STODD03

Number of Outputs
2

Output Voltage
3.3V

Output Type
Fixed

Max Output Current
700mA

Operating Supply Voltage
6V

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Operating Supply Current
1.6mA

Output Current
500mA

Max Output Voltage
14V

Min Input Voltage
4V

Max Input Voltage
6V

Max Duty Cycle
94 %

Switching Frequency
1.2MHz

Height
950?m

Length
4.1mm

Width
4.1mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST STODD03QTR.

Datasheets:

stmicroelectronics-stodd03pqr-datasheets-0184.pdf

STODD03QTR Overview

Using Cut Tape (CT) as a shipping the power management path is acceptable.Packing in 16-VQFN Exposed Pad makes transportation convenient.The Surface Mount mounting method is universal for easy adaptation.The power management is targeted at Optical and other applications.Keeping the operating temperature of the power management ic -25°C~125°C will prevent malfunctions.As a result, this power management is powered by 4V~6V voltage.See more power ic's pin-to-pin solutions with search STODD03 .This analog IC has received a great deal of praise as a POWER SUPPLY SUPPORT CIRCUIT analog instruments designs.The integrated power supplies is designed with 16 pins.A Surface Mount allows mounting on a PCB or other board.An operating voltage of 1.6mA is required for this power management ic.Overall, it supports 2 outputs.There is a voltage of 3.3V at the output.The current output of the ic power supply should be 500mA .

STODD03QTR Features

Mainly used in Optical applications
Operating temperature: -25°C~125°C
POWER SUPPLY SUPPORT CIRCUIT analog IC
2 Outputs

STODD03QTR Applications

There are a lot of STMicroelectronics
STODD03QTRPower Management applications.

Communications payload
Optical imaging payload
Desktop PC
Motherboard
Standard notebook PC
Chromebook
WOA
Docking station
Port/cable adapters
Port/cable dongles
