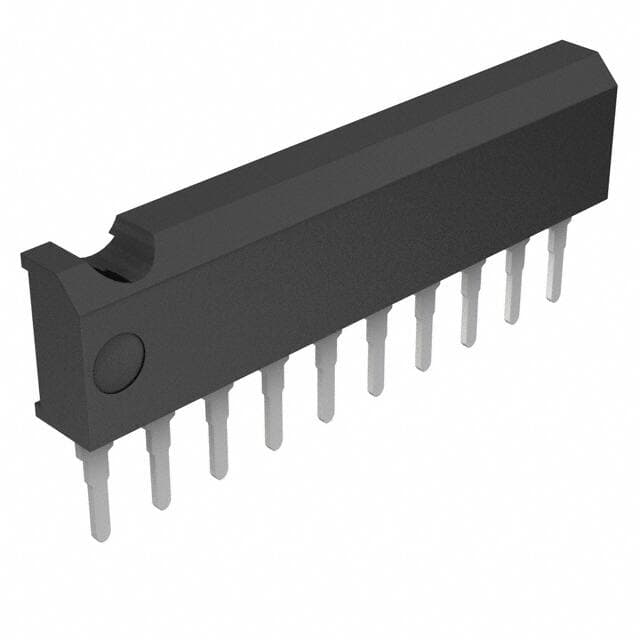

ROHM BA6238AN

Manufacturer No:

BA6238AN

Manufacturer:

ROHM

Package:

DIP, SIP10,.1

Description:

Description: Brush DC Motor Controller, 1.6A, BIPolar, ROHS COMPLIANT, SIP-10

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BA6238AN information

ROHM BA6238AN technical specifications, attributes, parameters and parts with similar specifications to ROHM BA6238AN.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
ROHM CO LTD

Part Package Code
SIP

Package Description
DIP, SIP10,.1

Pin Count
10

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Analog IC - Other Type
BRUSH DC MOTOR CONTROLLER

JESD-30 Code
R-XSIP-T10

JESD-609 Code
e2

Length
25.2 mm

Number of Functions
1

Number of Terminals
10

Operating Temperature-Max
75 °C

Operating Temperature-Min
-25 °C

Output Current-Max
1.6 A

Package Body Material
UNSPECIFIED

Package Code
DIP

Package Equivalence Code
SIP10,.1

Package Shape
RECTANGULAR

Package Style
IN-LINE

Qualification Status
Not Qualified

Seated Height-Max
7.2 mm

Supply Current-Max (Isup)
24 mA

Supply Voltage-Max (Vsup)
18 V

Supply Voltage-Min (Vsup)
8 V

Supply Voltage-Nom (Vsup)
12 V

Surface Mount
NO

Technology
BIPOLAR

Temperature Grade
COMMERCIAL EXTENDED

Terminal Finish
Tin/Copper (Sn/Cu)

Terminal Form
THROUGH-HOLE

Terminal Pitch
2.54 mm

Terminal Position
SINGLE

Time@Peak Reflow Temperature-Max (s)
10

Width
2.8 mm

Download datasheets and manufacturer documentation for ROHM BA6238AN.

Datasheets:

rohmsemiconductor-ba6238an-datasheets-1840.pdf

rohm-ba6238an-datasheets-4515.pdf

rohm-ba6238an-datasheets-4516.pdf

BA6238AN Overview

The package contains [0].There is 10-SIP case included with the part.A mounting position of Through Holeis recommended for the part.Fits the component connected to General Purpose.There is a possibility of providing 8V~18Vvolts through the device.In terms of operating temperature, it falls within the range -25°C~125°C TJ.A motor of this type can be categorized as Brushed DC.In this part, there are 10 terminations available.In this case, the voltage can be applied to the load at the rate of 8V~18V.Drivers controllers is recommended that this amplifier be run at 12V.There is Through Hole recommended mounting method for this device.Maintain a 1.6Aoutput current for the part.A BRUSH DC MOTOR CONTROLLERanalog IC is employed in this device.Using the BA6238Apart number, it is located.There are 10 pins on it.Drivers controllers is a part of the Motion Control Electronics series.2outputs are available.The driver is powered by a 18Vvolt supply.

BA6238AN Features

Applications : General Purpose
Load voltage across the chip 8V~18V
base on BA6238A number
designed with 2 outputs
