ST STOD14PUR
Manufacturer No:
STOD14PUR
Manufacturer:
Package:

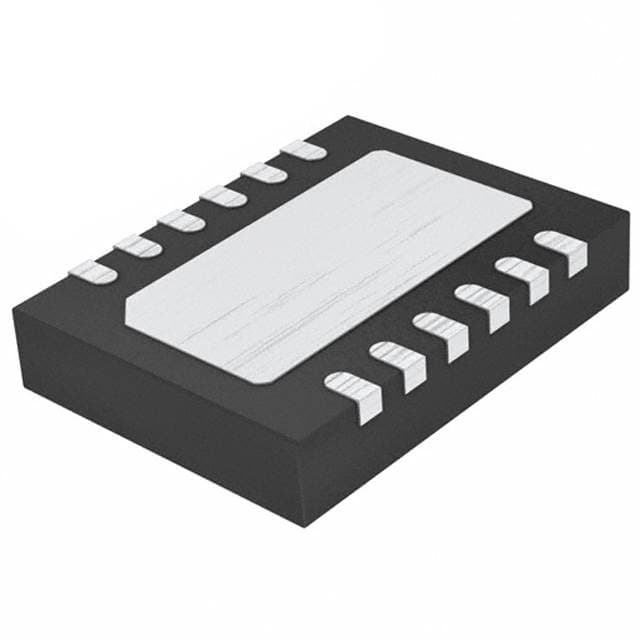

12-WFDFN Exposed Pad
Description:
Converter, AMOLED Display 4.6V -2.4V~-6V DUAL Specialized Voltage Regulator -40°C~85°C STOD14 1.6MHz 12 Terminations 12-WFDFN Exposed Pad
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
STOD14PUR Information
ST STOD14PUR technical specifications, attributes, parameters and parts with similar specifications to ST STOD14PUR.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 12-WFDFN Exposed Pad
- Operating Temperature
- -40°C~85°C
- Packaging
- Digi-Reel®
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 12
- ECCN Code
- EAR99
- Applications
- Converter, AMOLED Display
- Type
- Parameter
- Subcategory
- Switching Regulator or Controllers
- Terminal Position
- DUAL
- Number of Functions
- 1
- Terminal Pitch
- 0.5mm
- Base Part Number
- STOD14
- Number of Outputs
- 2
- Output Voltage
- 4.6V
- Input Voltage-Nom
- 9V
- Analog IC - Other Type
- DUAL SWITCHING CONTROLLER
- Voltage - Input
- 6V~13V
Download datasheets and manufacturer documentation for ST STOD14PUR.
STOD14PUR Description
STOD14PUR is a type of 700 mA dual-channel DC-DC converter drive for powering medium-sized AMOLED display panels. Due to the combination of a step-down and an inverting converter in a compact IC design, this electronic device is well-suited for battery-operated products. The value and size of external components can be reduced to a minimum based on the high-frequency operation. STOD14PUR DC-DC converter provides a suite of protection functions, including soft-start with controlled inrush current limit, load disconnect, and thermal shutdown.
STOD14PUR Features
Step-down and inverter converters
Operating input voltage range from 6 V to 13 V
Package: DFN12L (4 x 4 mm)
Synchronous rectification for both converters
700 mA output current
Fixed positive voltage 4.6 V
STOD14PUR Applications
Digital photo frames
Ultra mobile PCs
Mobile Internet devices
Digital still cameras / camcorders
Portable media players / DVD players
