ST STOD02PUR

Manufacturer No:

STOD02PUR

Manufacturer:

Package:

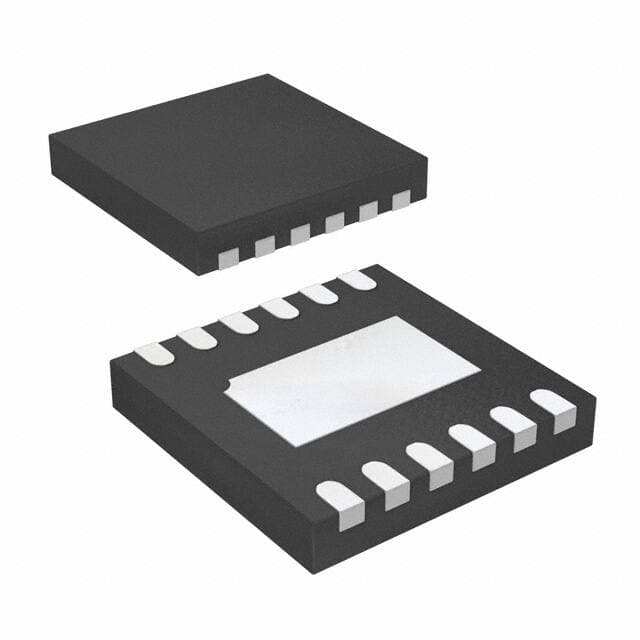

12-WFDFN Exposed Pad

Description:

Converter, AMOLED Display 4.6V -2.3V~-5.9V 260 Cel DUAL Specialized Voltage Regulator -40°C~85°C STOD02 12 Pins 1.85MHz 12 Terminations 12-WFDFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STOD02PUR information

ST STOD02PUR technical specifications, attributes, parameters and parts with similar specifications to ST STOD02PUR.

Type
Parameter

Factory Lead Time
16 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
12-WFDFN Exposed Pad

Number of Pins
12

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e3

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn) - annealed

Applications
Converter, AMOLED Display

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.45mm

Base Part Number
STOD02

Pin Count
12

Number of Outputs
2

Efficiency
85 %

Output Voltage
4.6V

Max Output Current
150mA

Input Voltage-Nom
3.7V

Analog IC - Other Type
SWITCHING REGULATOR

Voltage - Input
2.5V~4.5V

Output Current
150mA

Voltage - Output
4.6V -2.3V~-5.9V

Topology
Boost

Min Input Voltage
2.5V

Control Mode
VOLTAGE-MODE

Max Input Voltage
4.5V

Control Technique
PULSE WIDTH MODULATION

Switching Frequency
1.85MHz

Length
3mm

Height Seated (Max)
0.8mm

Width
3mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST STOD02PUR.

Datasheets:

stmicroelectronics-stod02tpur-datasheets-3718.pdf

STOD02PUR Overview

The system supports a total of 2outputs. It is packaged in a 12-WFDFN Exposed Padcontainer to facilitate transportation. Currently, the product is available for shipping in Tape & Reel (TR)packages. There is a general voltage output of 4.6V -2.3V~-5.9Von this regulator. Surface Mount Universal mount allows for easy adaptation. The device is intended for use at Converter, AMOLED Displayas well as other applications. To ensure proper functioning, the operating temperature should be set to [0]. This regulator requires a voltage input of 2.5V~4.5V. The component has 12terminals. This part is highly regarded as a SWITCHING REGULATORregulator. The component's pinout begins with 12pins. Search STOD02for more pin-to-pin solutions. There is a Surface Mounton the board for mounting to a PCB or other board. Devices with 12pins are available. The device, as well as other Switching Regulator or Controllersplay a vital role in the industry. Currently, the device should output 150mA. A voltage greater than 2.5Vis required for this regulator. Regulators can operate at a frequency of 1.85MHz. At its maximum, it is designed to produce current [0].

STOD02PUR Features

Widely used in Converter, AMOLED Display applications
SWITCHING REGULATOR analog IC

STOD02PUR Applications

There are a lot of STMicroelectronics STOD02PUR Specialized Voltage Regulators applications.

DDR2/DDR3/DDR3L Memory Power Supplies
WLAN
Telecom/Datacom
Camcorders
Graphics Processor Core Supplies
Handheld PC Power
Personal Digital Assistants (PDAs)
PoE applications
Set Top Boxes, LCD?TV/PDP?TV, Copier/Printers
High-Speed Logic Families
