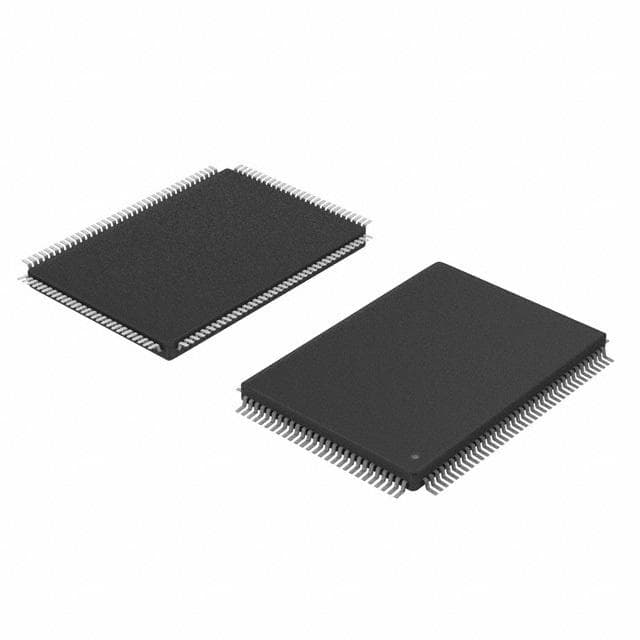

Renesas 70V9269L15PRF

Manufacturer No:

70V9269L15PRF

Manufacturer:

Renesas

Package:

TQFP

Description:

Surface Mount 128 Pin Memory IC 256 kb kb 20mm mm 185mA mA 16b b

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

70V9269L15PRF information

Renesas 70V9269L15PRF technical specifications, attributes, parameters and parts with similar specifications to Renesas 70V9269L15PRF.

Type
Parameter

Factory Lead Time
7 Weeks

Mount
Surface Mount

Package / Case
TQFP

Number of Pins
128

Packaging
Bulk

Published
2008

JESD-609 Code
e0

Pbfree Code
no

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
128

ECCN Code
EAR99

Terminal Finish
Tin/Lead (Sn85Pb15)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Subcategory
SRAMs

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
225

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Frequency
28.5MHz

Pin Count
128

Temperature Grade
COMMERCIAL

Interface
Parallel

Max Supply Voltage
3.6V

Min Supply Voltage
3V

Memory Size
32kB

Number of Ports
2

Nominal Supply Current
185mA

Memory Type
RAM, SDR, SRAM

Access Time
15 ns

Organization
16KX16

Output Characteristics
3-STATE

Address Bus Width
28b

Density
256 kb

Standby Current-Max
0.003A

I/O Type
COMMON

Sync/Async
Synchronous

Word Size
16b

Standby Voltage-Min
3V

Length
20mm

Width
14mm

Thickness
1.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Renesas 70V9269L15PRF.

Datasheets:

integrateddevicetechnology-70v9269l15prf-datasheets-0884.pdf

integrateddevicetechnology-70v9269l15prf-datasheets-3956.pdf

70V9269L15PRF Overview

There is a memory type RAM, SDR, SRAM for this type of device. The case comes in the Bulk style. The file is embedded in a TQFP case. This chip has an 32kB size of memory on it, so a lot of data can be stored on it. The chip contains 128 terminations. An 3.3V supply is required for this ic memory chip to operate properly. A package of 128 pins is used to protect this memory device. The memory device has 128 pins, which means that it has 128 memory locations, which indicates it is an 128-bit device. This memory runs on an 3.3V operating supply voltage. Memory chips configured with Surface Mount mounting achieve high efficiency and simplicity. The nominal supply current of this memory component is 185mA. Each memory address is accessed by one of 2 ports on this chip. An COMMON-bit memory mapped I/O port address is used to address this device. There must be at least an 0°C operating temperature for this device. The part should not be operated at temperatures above 70°C degrees Celsius as otherwise, the part may be damaged due to the excessive amount of heat. The component is usually referred to as a type of SRAMs. This part should have a minimum supply voltage of 3V. A maximum voltage of 3.6V shall be allowed for its operating voltage. As a result of the frequency of this memory chip, data can be processed at a rate of 28.5MHz.

70V9269L15PRF Features

Package / Case: TQFP
128 Pins
Operating Supply Voltage:3.3V
I/O Type: COMMON
Freguency at 28.5MHz
28.5MHz terminals

70V9269L15PRF Applications

There are a lot of Integrated Device Technology (IDT)
70V9269L15PRF Memory applications.

personal computers
servers
supercomputers
telecommunications
workstations,
DVD disk buffer
data buffer
nonvolatile BIOS memory
Camcorders
embedded logic
