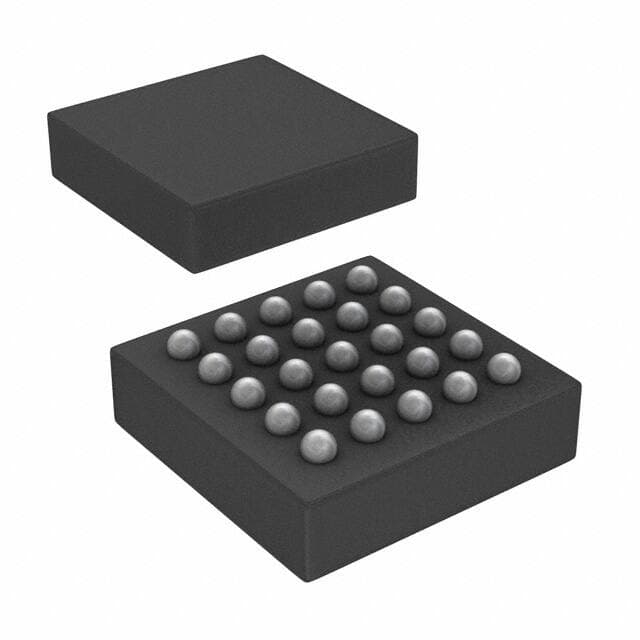

ST STMPE1601TBR

Manufacturer No:

STMPE1601TBR

Manufacturer:

Package:

25-TFBGA

Description:

25 Termination 0.5mm 1.8/3.3V I/O Expander Xpander Logic? Series STMPE1601 25 Pin 1.8V 25-TFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STMPE1601TBR information

ST STMPE1601TBR technical specifications, attributes, parameters and parts with similar specifications to ST STMPE1601TBR.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
25-TFBGA

Number of Pins
25

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

Series
Xpander Logic?

JESD-609 Code
e3

Feature
Keypad Controller, POR, PWM

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
25

ECCN Code
EAR99

Terminal Finish
MATTE TIN

HTS Code
8542.39.00.01

Subcategory
Parallel IO Port

Technology
CMOS

Voltage - Supply
1.65V~3.6V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
225

Supply Voltage
1.8V

Terminal Pitch
0.5mm

Pin Count
25

Output Type
Open Drain

Power Supplies
1.8/3.3V

Interface
I2C

Number of I/O
16

Number of Ports
1

uPs/uCs/Peripheral ICs Type
PARALLEL IO PORT, GENERAL PURPOSE

Number of Bits
16

Clock Frequency
400kHz

Interrupt Output
Yes

Current - Output Source/Sink
4mA

Length
3mm

Width
3mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ST STMPE1601TBR.

Datasheets:

stmicroelectronics-stmpe1601tbr-datasheets-0325.pdf

STMPE1601TBR Overview

16 I/Os are programmed into it.25-TFBGA packaging contains the device.Case Tape & Reel (TR) is available.Voting within 1.65V~3.6V is provided.Surface Mount is the recommended mounting type.If the operating temperature ranges from -40°C~85°C to Y, the device will work.Performance is achieved by its output frequency at 400kHz.As a whole, it is terminated with 25s.25 is the total number of pins on the part.At 1.8V, the device provides voltage.To run 225, we use the peak reflow temperature of this part.There are a total of 1 ports on the device.Using the STMPE1601 family as a guide, you can find parts that are related.This device can also be used to establish Keypad Controller, POR, PWM.IC chip bits total 16.Power can be delivered at 1.8/3.3V.Devices with 25 pins are available.Surface Mount can be used to mount the part.PARALLEL IO PORT, GENERAL PURPOSE uPs/uCs/Peripheral ICs belong to this category.There are several models in the Parallel IO Port series.
