ST STM32L486QGI6
ST STM32L486QGI6

ST STM32L486QGI6

Manufacturer No:

STM32L486QGI6

Manufacturer:

ST

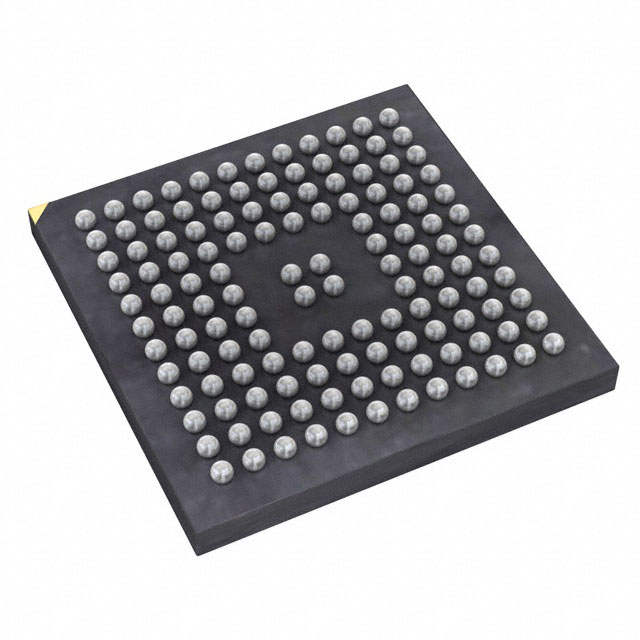

Package:

UFBGA-132

Description:

Description: Ultra-low-power with FPU Arm Cortex-M4 MCU 80 MHz with 1 Mbyte of Flash memory, LCD, USB OTG, AES-256, DFSDM

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STM32L486QGI6 information

ST STM32L486QGI6 technical specifications, attributes, parameters and parts with similar specifications to ST STM32L486QGI6.

  • Type
  • Parameter
  • RoHS Status
  • RoHS Compliant
  • Part Life Cycle Code
  • Active
  • Ihs Manufacturer
  • STMICROELECTRONICS
  • Package Description
  • UFBGA-132
  • Manufacturer Package Code
  • UFBGA 7X7X0.6 132L P 0.5 R 12X12
  • Reach Compliance Code
  • compliant
  • ECCN Code
  • 5A992.C
  • HTS Code
  • 8542.31.00.01
  • Factory Lead Time
  • 17 Weeks, 5 Days
  • Samacsys Manufacturer
  • STMicroelectronics
  • Has ADC
  • YES
  • Bit Size
  • 32
  • Boundary Scan
  • YES
  • CPU Family
  • CORTEX-M4
  • Clock Frequency-Max
  • 48 MHz
  • DAC Channels
  • YES
  • DMA Channels
  • YES
  • Format
  • FLOATING-POINT
  • Integrated Cache
  • NO
  • JESD-30 Code
  • S-PBGA-B132
  • Length
  • 7 mm
  • Low Power Mode
  • YES
  • Moisture Sensitivity Level
  • 3
  • Number of DMA Channels
  • 14
  • Number of I/O Lines
  • 109
  • Number of Serial I/Os
  • 6
  • Number of Terminals
  • 132
  • Number of Timers
  • 14
  • On Chip Data RAM Width
  • 8
  • On Chip Program ROM Width
  • 8
  • Operating Temperature-Max
  • 85 °C
  • Operating Temperature-Min
  • -40 °C
  • PWM Channels
  • YES
  • Package Body Material
  • PLASTIC/EPOXY
  • Package Code
  • VFBGA
  • Package Equivalence Code
  • BGA132,12X12,20
  • Package Shape
  • SQUARE
  • Package Style
  • GRID ARRAY, VERY THIN PROFILE, FINE PITCH
  • Peak Reflow Temperature (Cel)
  • 260
  • RAM (bytes)
  • 131072
  • ROM (words)
  • 1048576
  • ROM Programmability
  • FLASH
  • Seated Height-Max
  • 0.6 mm
  • Speed
  • 80 MHz
  • Supply Current-Max
  • 150 mA
  • Supply Voltage-Max
  • 3.6 V
  • Supply Voltage-Min
  • 1.8 V

Download datasheets and manufacturer documentation for ST STM32L486QGI6.

Datasheets:

STM32L486QGI6 Description


Ultra-low power ARM? Cortex?-M4 32bit MCU+FPU, 100DMIPS. It supports 19x communication interfaces (USB OTG 2.0 full-speed, LPM and BCD), rich analogue peripherals (independent supply), and 16x timers.



STM32L486QGI6 Features


  • 14-channel DMA controller

  • LCD 8x 40 or 4x 44 with step-up converter

  • 4x digital filters for sigma delta modulator

  • RTC with HW calendar, alarms and calibration

  • 3 PLLs for system clock, audio, ADC clock sources

  • AES: 128/256-bit key encryption hardware accelerator

  • True random number generator, CRC calculation unit, 96-bit unique ID

  • Development support: serial wire debug (SWD), JTAG, Embedded Trace Macrocell?

  • Up to 24 capacitive sensing channels: support touch key, linear and rotary touch sensors

  • Up to 114 fast I/Os, most 5V-tolerant, up to 14 I/Os with independent supply down to 1.08V



STM32L486QGI6 Applications


  • Industrial

  • Enterprise systems

  • Personal electronics
