ST STTH30W03CW

Manufacturer No:

STTH30W03CW

Manufacturer:

Package:

TO-247-3

Description:

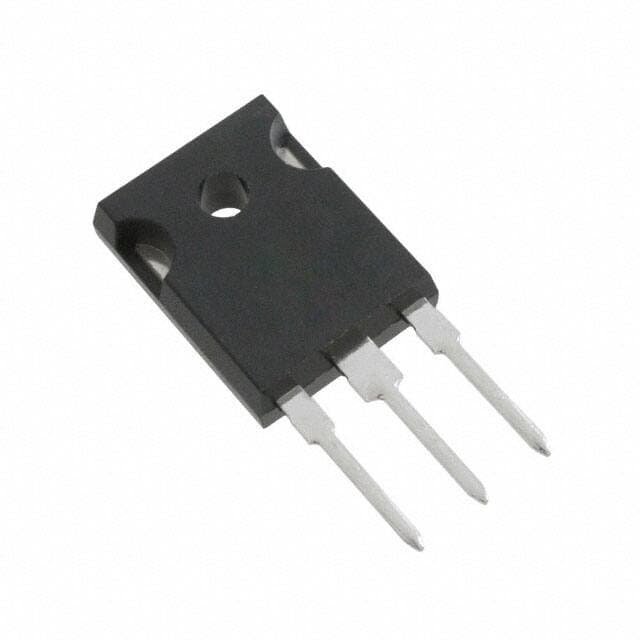

Standard Rectifier Diode 1 Pair Common Cathode Fast Recovery =< 500ns, > 200mA (Io) 175°C Max 15A 300V-DC 2-Element TO-247-3 Through Hole

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STTH30W03CW information

ST STTH30W03CW technical specifications, attributes, parameters and parts with similar specifications to ST STTH30W03CW.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
TO-247-3

Number of Pins
3

Diode Element Material
SILICON

Packaging
Tube

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
3

ECCN Code
EAR99

Max Operating Temperature
175°C

Min Operating Temperature
-65°C

Subcategory
Rectifier Diodes

Terminal Position
SINGLE

Base Part Number
STTH30

Number of Elements
2

Element Configuration
Common Cathode

Speed
Fast Recovery =< 500ns, > 200mA (Io)

Diode Type
Standard

Current - Reverse Leakage @ Vr
10?A @ 300V

Voltage - Forward (Vf) (Max) @ If
1.4V @ 15A

Forward Current
30A

Operating Temperature - Junction
175°C Max

Application
HIGH VOLTAGE ULTRA FAST RECOVERY

Max Reverse Voltage (DC)
300V

Average Rectified Current
15A

Number of Phases
1

Reverse Recovery Time
20ns

Peak Reverse Current
100?A

Max Repetitive Reverse Voltage (Vrrm)
300V

Peak Non-Repetitive Surge Current
150A

Reverse Voltage
300V

Diode Configuration
1 Pair Common Cathode

Max Forward Surge Current (Ifsm)
150A

Recovery Time
230 ns

Height
20.15mm

Length
15.75mm

Width
5.15mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ST STTH30W03CW.

STTH30W03CW Overview

The device operates when the forward voltage is set to 1.6V.The device operates when the forward voltage is set to 30A.Typical devices like this one are powered by reverse voltage peaks of 100?A.

STTH30W03CW Features

1.6V forward voltage
a peak voltage of 100?A
a reverse voltage peak of 100?A

STTH30W03CW Applications

There are a lot of STMicroelectronics
STTH30W03CW applications of rectifier diode array.

Rectifier for drives applications
Crowbar applications
Rectifiers for UBS
Battery chargers
Rectifiers in switch mode power supplies (SMPS)
Free wheeling diode in low voltage converters
General Rectification
