ST STM32F405OEY6TR

Manufacturer No:

STM32F405OEY6TR

Manufacturer:

Package:

90-UFBGA, WLCSP

Description:

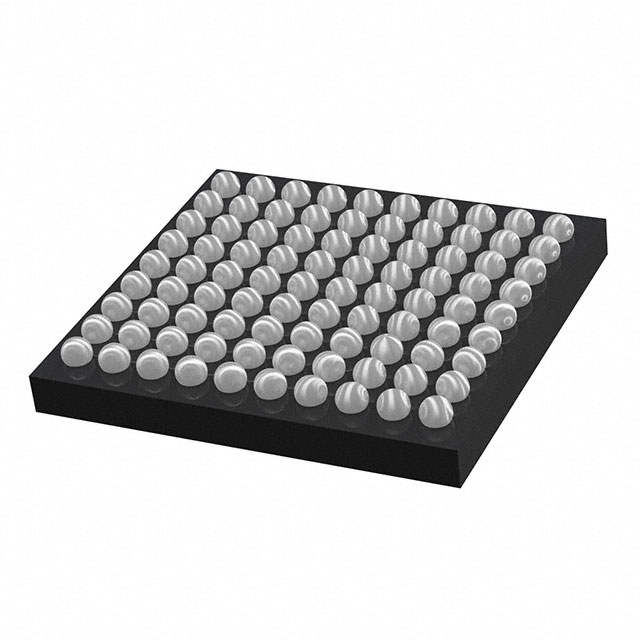

512KB 512K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller STM32F4 Series STM32F405 90 Pin 168MHz 3.3V 90-UFBGA, WLCSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STM32F405OEY6TR information

ST STM32F405OEY6TR technical specifications, attributes, parameters and parts with similar specifications to ST STM32F405OEY6TR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
12 Weeks

Mounting Type
Surface Mount

Package / Case
90-UFBGA, WLCSP

Surface Mount
YES

Number of Pins
90

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Series
STM32F4

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
90

ECCN Code
3A991.A.2

HTS Code
8542.31.00.01

Max Power Dissipation
543mW

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Supply Voltage
3.3V

Terminal Pitch
0.4mm

Frequency
168MHz

Base Part Number
STM32F405

Pin Count
90

Supply Voltage-Max (Vsup)
3.6V

Interface
CAN, EBI/EMI, I2C, I2S, IrDA, LIN, SPI, UART, USART, USB

Memory Size
512kB

Oscillator Type
Internal

Number of I/O
72

RAM Size
192K x 8

Voltage - Supply (Vcc/Vdd)
1.8V~3.6V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER, RISC

Core Processor
ARM® Cortex®-M4

Peripherals
Brown-out Detect/Reset, DMA, I2S, LCD, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
512KB 512K x 8

Connectivity
CANbus, EBI/EMI, I2C, IrDA, LINbus, SPI, UART/USART, USB OTG

Supply Current-Max
102mA

Bit Size
32

Data Converter
A/D 13x12b; D/A 2x12b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
YES

Data Bus Width
32b

PWM Channels
YES

DAC Channels
YES

Number of Timers/Counters
14

Download datasheets and manufacturer documentation for ST STM32F405OEY6TR.

Datasheets:

stmicroelectronics-stm32f405oey6tr-datasheets-5867.pdf

nxpusainc-afsc5g26d37t1-datasheets-5642.pdf

STM32F405OEY6TR Description

Based on the high-performance ARM? Cortex?-M4 32-bit RISC CPU that operates at a frequency of up to 168 MHz is the STM32F405xx and STM32F407xx family. A floating point unit (FPU) single precision is a feature of the Cortex-M4 core that supports all ARM singleprecision data-processing instructions and data formats. Additionally, it incorporates a memory protection unit (MPU) that improves program security together with the whole range of DSP instructions.

High-speed embedded memories (Flash memory up to 1 Mbyte, up to 192 Kbytes of SRAM, up to 4 Kbytes of backup SRAM, and a wide range of upgraded I/Os and peripherals connected to two APB buses, three AHB buses, and a 32-bit multi-AHB bus matrix) are included in the STM32F405xx and STM32F407xx series.

All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, two general-purpose 32-bit timers. a true random number generator (RNG). They also feature standard and advanced communication interfaces.

STM32F405OEY6TR Features

1.8 V to 3.6 V application supply and I/Os
POR, PDR, PVD and BOR
4-to-26 MHz crystal oscillator
Internal 16 MHz factory-trimmed RC (1% accuracy)
32 kHz oscillator for RTC with calibration
Internal 32 kHz RC with calibration
3×12-bit, 2.4 MSPS A/D converters: up to 24 channels and 7.2 MSPS in triple interleaved mode
2×12-bit D/A converters
General-purpose DMA: 16-stream DMA controller with FIFOs and burst support

STM32F405OEY6TR Applications

Power Management
Consumer Electronics
Portable Devices
Industrial
