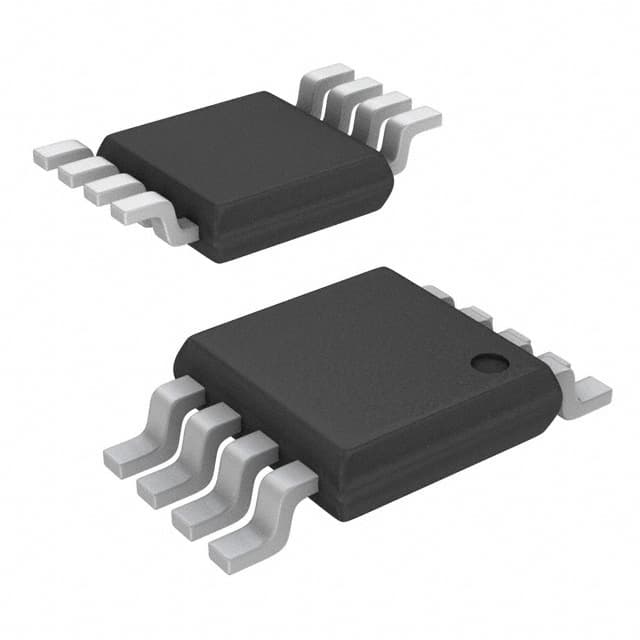

NXP PCA24S08DP,118
NXP PCA24S08DP,118

NXP PCA24S08DP,118

Manufacturer No:

PCA24S08DP,118

Manufacturer:

NXP

Package:

8-TSSOP, 8-MSOP (0.118, 3.00mm Width)

Description:

3/3.3V V 8 Pin Memory IC PCA24S08 3mm mm

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

PCA24S08DP,118 information

NXP PCA24S08DP,118 technical specifications, attributes, parameters and parts with similar specifications to NXP PCA24S08DP,118.

  • Type
  • Parameter
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tape & Reel (TR)
  • Published
  • 2010
  • JESD-609 Code
  • e4
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 8
  • ECCN Code
  • EAR99
  • Terminal Finish
  • SILVER
  • HTS Code
  • 8542.32.00.51
  • Technology
  • CMOS
  • Voltage - Supply
  • 2.5V~3.6V
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Terminal Pitch
  • 0.65mm
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Base Part Number
  • PCA24S08
  • Pin Count
  • 8
  • JESD-30 Code
  • S-PDSO-G8
  • Qualification Status
  • Not Qualified
  • Power Supplies
  • 3/3.3V
  • Supply Voltage-Min (Vsup)
  • 2.5V
  • Memory Size
  • 8Kb 1K x 8
  • Memory Type
  • Non-Volatile
  • Operating Mode
  • SYNCHRONOUS
  • Clock Frequency
  • 400kHz
  • Supply Current-Max
  • 0.001mA
  • Memory Format
  • EEPROM
  • Memory Interface
  • I2C
  • Organization
  • 1KX8
  • Memory Width
  • 8
  • Standby Current-Max
  • 0.000015A
  • Memory Density
  • 8192 bit
  • Parallel/Serial
  • SERIAL
  • Serial Bus Type
  • I2C
  • Endurance
  • 100000 Write/Erase Cycles
  • Data Retention Time-Min
  • 10
  • Write Protection
  • HARDWARE/SOFTWARE
  • I2C Control Byte
  • 10101MMR
  • Length
  • 3mm
  • Height Seated (Max)
  • 1.1mm
  • Width
  • 3mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for NXP PCA24S08DP,118.

Datasheets:

PCA24S08DP,118 Overview


In this case, the memory type of the device can be classified as Non-Volatile. Case Tape & Reel (TR) is available. An embedded 8-TSSOP, 8-MSOP (0.118, 3.00mm Width) case surrounds memory ics. It is estimated that the memory size on the chip is 8Kb 1K x 8. As with most mainstream devices, this one uses EEPROM-format memory. Due to its wide temperature range of -40°C~85°C TA, this device is well suited to a wide range of applications that require high performance. With 2.5V~3.6V as the supply voltage, it is capable of handling memory ics. It is recommended to mount it in the Surface Mount mounting type. It is planted on the chip with 8 terminations. It supports up to 1 functions for comprehensive operation. In order to operate effectively, the memory rotates at a clock frequency within a range of 400kHz. A device's base part number, PCA24S08, is often used in order to identify similar components. The memory device has a total of 8 pins, thus indicating that it has a total of 8 memory locations. In terms of power requirements, this memory chip uses only 3/3.3V . It is helpful to carry data to the CPU using the I2C-type serial bus that this memory integrates with. In terms of power consumption, it can operate at a maximum supply of 0.001mA .

PCA24S08DP,118 Features


Package / Case: 8-TSSOP, 8-MSOP (0.118, 3.00mm Width)


PCA24S08DP,118 Applications


There are a lot of NXP USA Inc.
PCA24S08DP,118 Memory applications.


  • networking
  • personal computers
  • servers
  • supercomputers
  • telecommunications
  • workstations,
  • DVD disk buffer
  • data buffer
  • nonvolatile BIOS memory
  • Camcorders
