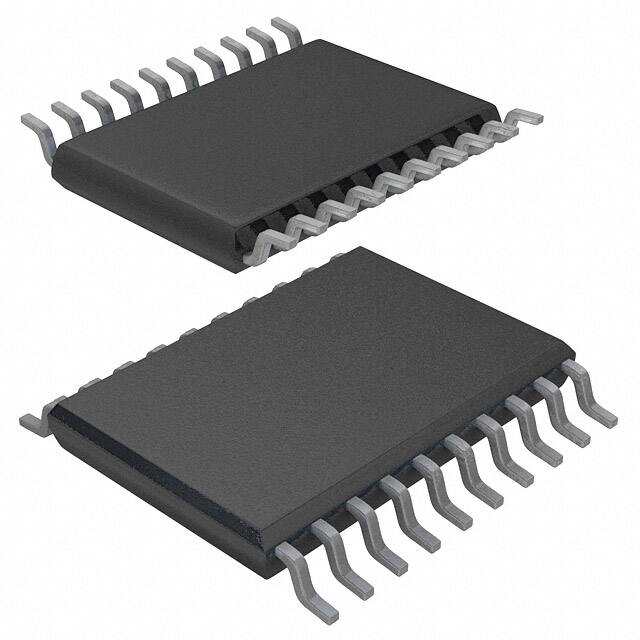

ST STM32F030F4P6

Description

The Arm? Cortex?-M0 32-bit RISC engine, up to 256 Kbytes of Flash memory, and up to 32 Kbytes of SRAM, together with a wide variety of improved peripherals and I/Os, are all included in the STM32F030F4P6 microcontroller. All of the devices include common communication interfaces, including one 12-bit ADC, seven general-purpose 16-bit timers, and one advanced-control PWM timer, along with up to two I2Cs, up to two SPIs, and up to six USARTs.

Using a 2.4 to 3.6V power source, the STM32F030F4P6 microcontroller can function in the -40 to +85 °C temperature range. The development of low-power applications is made possible by a wide range of power-saving modes.

Devices for the STM32F030F4P6 microcontroller are available in four distinct packages with pin counts ranging from 20 to 64. There are several sets of peripherals included depending on the device selected. The list of suggested STM32F030F4P6 peripherals is summarized in the paragraphs below.

Features

? Communication interfaces

– Up to two I2C interfaces

– Fast Mode Plus (1 Mbit/s) support on one or two I/Fs, with 20 mA current sink

– SMBus/PMBus support (on single I/F)

– Up to six USARTs supporting master synchronous SPI and modem control; one with auto baud rate detection

– Up to two SPIs (18 Mbit/s) with 4 to 16 programmable bit frames

? Serial wire debug (SWD)

? All packages ECOPACK?2

? 5-channel DMA controller

? One 12-bit, 1.0 μs ADC (up to 16 channels)

– Conversion range: 0 to 3.6 V

– Separate analog supply: 2.4 V to 3.6 V

? Calendar RTC with alarm and periodic wakeup from Stop/Standby

? 11 timers

– One 16-bit advanced-control timer for six-channel PWM output

– Up to seven 16-bit timers, with up to four IC/OC, OCN, usable for IR control decoding

– Independent and system watchdog timers

– SysTick timer

? Core: Arm? 32-bit Cortex?-M0 CPU, frequency up to 48 MHz

? Memories

– 16 to 256 Kbytes of Flash memory

– 4 to 32 Kbytes of SRAM with HW parity

? Reset and power management

– Digital & I/Os supply: VDD = 2.4 V to 3.6 V

– Analog supply: VDDA = VDD to 3.6 V

– Power-on/Power down reset (POR/PDR)

– Low power modes: Sleep, Stop, Standby

Applications

• Application control

• User interfaces

• Handheld equipment

• A/V receivers

• Digital TV

• PC peripherals

• GPS platforms

• Industrial applications

• PLCs

• Inverters

• Printers

• Scanners

• Alarm systems

• Video intercoms

• HVACs
