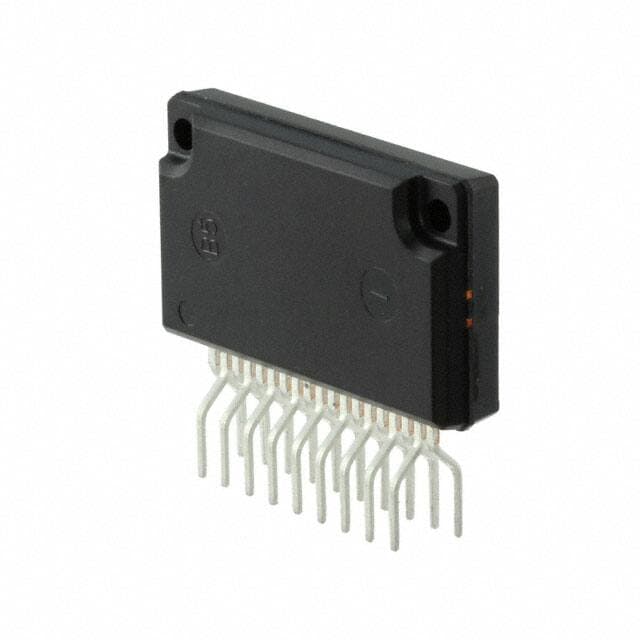

ONSEMI STK672-442B-E

Manufacturer No:

STK672-442B-E

Manufacturer:

ONSEMI

Package:

19-SSIP Formed Leads

Description:

Motor Drivers 19 5V V Motion Control Electronics

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STK672-442B-E information

ONSEMI STK672-442B-E technical specifications, attributes, parameters and parts with similar specifications to ONSEMI STK672-442B-E.

Type
Parameter

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
19-SSIP Formed Leads

Number of Pins
19

Operating Temperature
-20°C~105°C TC

Packaging
Tube

Published
2013

JESD-609 Code
e2

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
19

Terminal Finish
Tin/Nickel (Sn/Ni)

Applications
General Purpose

Additional Feature
ALSO OPERATES IN 0 TO 46V SUPPLY

HTS Code
8542.39.00.01

Subcategory
Motion Control Electronics

Technology
Power MOSFET

Voltage - Supply
4.75V~5.25V

Terminal Position
ZIG-ZAG

Supply Voltage
5V

Terminal Pitch
1mm

Function
Driver - Fully Integrated, Control and Power Stage

Operating Supply Voltage
5V

Interface
Parallel

Analog IC - Other Type
STEPPER MOTOR CONTROLLER

Output Configuration
Half Bridge (2)

Current - Output
3A

Logic Function
AND

Supply Current-Max (Isup)
7mA

Voltage - Load
0V~46V

Motor Type - Stepper
Unipolar

Step Resolution
1, 1/2, 1/4, 1/8, 1/16

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI STK672-442B-E.

Datasheets:

onsemiconductor-stk672442be-datasheets-6268.pdf

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

STK672-442B-E Overview

The package is designed with [0].The part is packaged in a 19-SSIP Formed Leads case.In general, it is recommended that the part be mounted by Through Hole.The component connected in General Purposeis compatible with it.4.75V~5.25V volts can be supplied by the device.Drivers controllers operates wDrivers controllershin a range of -20°C~105°C TCdegrees Celsius.This part has 19termination options.A voltage of 0V~46Vcan be applied to the load.This amplifier should be operated at 5V.Ideally, it should be mounted in the Through Holeposition.Maintain a current of 3Afor the part output.A STEPPER MOTOR CONTROLLERanalog integrated circuit is used in the device.The device has 19 pins.The item belongs to the Motion Control Electronics series.A supply voltage of 5Vis required to operate this driver.In addition to this, it is also characterized by ALSO OPERATES IN 0 TO 46V SUPPLY.

STK672-442B-E Features

Applications : General Purpose
Load voltage across the chip 0V~46V
Additional Feature: ALSO OPERATES IN 0 TO 46V SUPPLY

STK672-442B-E Applications

There are a lot of ON Semiconductor
STK672-442B-E motor drivers applications.

High power LED street light
Large outdoor LED display
Commercial office
Hospitality buildings
Smart lighting applications
Automotive applications
Dome
Dash
Footwell lighting
Indicator
