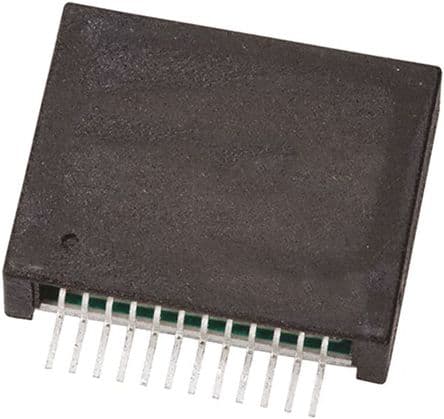

ONSEMI STK672-120-E

Manufacturer No:

STK672-120-E

Manufacturer:

ONSEMI

Package:

SIP

Description:

Motor Drivers 12 5V V Motion Control Electronics

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STK672-120-E information

ONSEMI STK672-120-E technical specifications, attributes, parameters and parts with similar specifications to ONSEMI STK672-120-E.

Type
Parameter

Mount
Through Hole

Package / Case
SIP

Number of Pins
12

Operating Temperature
150°C TJ

Packaging
Bulk

Published
2013

JESD-609 Code
e2

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
12

Terminal Finish
Tin/Nickel/Copper (Sn/Ni/Cu)

Applications
General Purpose

Additional Feature
ALSO OPERATES IN 10 TO 42 SUPPLY

HTS Code
8542.39.00.01

Subcategory
Motion Control Electronics

Technology
Power MOSFET

Voltage - Supply
4.75V~5.25V

Terminal Position
SINGLE

Supply Voltage
5V

Terminal Pitch
1.98mm

Base Part Number
STK672

Function
Driver - Fully Integrated, Control and Power Stage

Supply Voltage-Max (Vsup)
5.25V

Supply Voltage-Min (Vsup)
4.75V

Interface
Parallel

Analog IC - Other Type
STEPPER MOTOR CONTROLLER

Output Configuration
Half Bridge (2)

Current - Output
3A

Supply Current-Max (Isup)
6mA

Voltage - Load
10V~42V

Motor Type - Stepper
Unipolar

Step Resolution
1, 1/2

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI STK672-120-E.

ReachStatement:

onsemiconductor-6svp22m-reachstatement-6839.pdf

STK672-120-E Overview

The package is designed with [0].The part is packaged in a SIP case.The component connected in General Purposeis compatible with it.4.75V~5.25V volts can be supplied by the device.Drivers controllers operates wDrivers controllershin a range of 150°C TJdegrees Celsius.This part has 12termination options.A voltage of 10V~42Vcan be applied to the load.This amplifier should be operated at 5V.Ideally, it should be mounted in the Through Holeposition.Maintain a current of 3Afor the part output.A STEPPER MOTOR CONTROLLERanalog integrated circuit is used in the device.Based on the STK672part number, it is found.The device has 12 pins.The item belongs to the Motion Control Electronics series.In addition to this, it is also characterized by ALSO OPERATES IN 10 TO 42 SUPPLY.

STK672-120-E Features

Applications : General Purpose
Load voltage across the chip 10V~42V
base on STK672 number
Additional Feature: ALSO OPERATES IN 10 TO 42 SUPPLY
