ST STG3155DTR
ST STG3155DTR

ST STG3155DTR

Manufacturer No:

STG3155DTR

Manufacturer:

ST

Package:

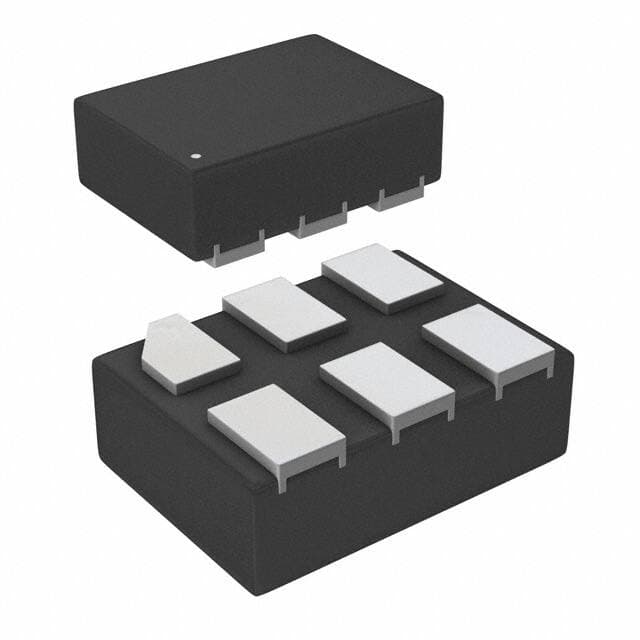

6-UFDFN

Description:

55ns, 30ns SPDT 600mOhm DUAL Analog Switches BREAK-BEFORE-MAKE STG3155 6 Pins 20nA 2.7V 6-UFDFN

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

STG3155DTR information

ST STG3155DTR technical specifications, attributes, parameters and parts with similar specifications to ST STG3155DTR.

  • Type
  • Parameter
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 6-UFDFN
  • Number of Pins
  • 6
  • Operating Temperature
  • -55°C~125°C TA
  • Packaging
  • Tape & Reel (TR)
  • JESD-609 Code
  • e4
  • Pbfree Code
  • yes
  • Part Status
  • Obsolete
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 6
  • Resistance
  • 600mOhm
  • Terminal Finish
  • Nickel/Palladium/Gold (Ni/Pd/Au)
  • Additional Feature
  • 2-CHANNEL MUX/DEMUX
  • Subcategory
  • Multiplexer or Switches
  • Max Power Dissipation
  • 1.12W
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Terminal Form
  • NO LEAD
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Supply Voltage
  • 2.7V
  • Terminal Pitch
  • 0.5mm
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Pin Count
  • 6
  • Qualification Status
  • Not Qualified
  • Output Voltage
  • 4.3V
  • Number of Channels
  • 1
  • Number of Circuits
  • 1
  • Max Supply Voltage
  • 4.3V
  • Min Supply Voltage
  • 1.65V
  • Operating Supply Current
  • 50nA
  • Nominal Supply Current
  • 1μA
  • Output Current
  • 200mA
  • Max Supply Current
  • 50nA
  • Turn On Delay Time
  • 55 ns
  • Supply Type
  • Single
  • Turn-Off Delay Time
  • 30 ns
  • -3db Bandwidth
  • 70MHz
  • On-State Resistance (Max)
  • 600mOhm
  • Multiplexer/Demultiplexer Circuit
  • 2:1
  • Off-state Isolation-Nom
  • 74 dB
  • Current - Leakage (IS(off)) (Max)
  • 20nA
  • Channel Capacitance (CS(off), CD(off))
  • 6.6pF
  • On-state Resistance Match-Nom
  • 0.017Ohm
  • Switch Circuit
  • SPDT
  • Switch Time (Ton, Toff) (Max)
  • 55ns, 30ns

Download datasheets and manufacturer documentation for ST STG3155DTR.

Datasheets:

STG3155DTR Overview


Shipping overseas is convenient due to the electrical component's packing in 6-UFDFN. This packaging method provides high reliability because it uses advanced packaging techniques. Multiplexers like this are mounted in the Surface Mount position. Multiplexers and demultiplexers have a number of circuits 2:1. Operational temperature extended around -55°C~125°C TA. 6 terminations have been made so far. Due to its 1 channels, the electrical component produces high-quality output. When a voltage supply of 2.7V is used, the electronic component should be turned on and run. It is injected into the electrical part body with 6 pins. Multiplexers built on a SPDT switching circuit are built. It consists of 1 circuits. Try searching for the analog switch ic with STG3155 if you are looking for variants. As far as internal resistance is concerned, it has 600mOhm. To find out what the functions of 6 pins are, please refer to their datasheets. In this analog multiplexer, the value is Multiplexer or Switches. Users shouldn't supply more than 4.3V voltage to the switch device. An effective Single supply digital multiplexer. It is recommended that the electrical component receives a voltage of 1.65V. This digital switch can be operated with a current of 50nA. This analogue multiplexer requires a voltage of 1.65V~4.3V when it drains from a single voltage supply. Put voltage above 50nA on the multiplexer to cause damage. Check out the electrical component's additional features, such as the following: 2-CHANNEL MUX/DEMUX.

STG3155DTR Features


1 Channels
Switch Circuit: SPDT
50nA Supply Current
-3db Bandwidth: 70MHz
Additional Features: 2-CHANNEL MUX/DEMUX


STG3155DTR Applications


There are a lot of STMicroelectronics
STG3155DTR Analog Switches & Multiplexers ICs applications.


  • Automatic test equipment
  • Precision data acquisition
  • Battery-powered systems
  • Sample-and-hold systems
  • Communication systems
  • Data Acquisition Systems
  • Relay Replacement
  • Battery Powered Systems
  • Existing multiplexer applications (both fault-protected and nonfault-protected)
  • New designs requiring multiplexer functions
