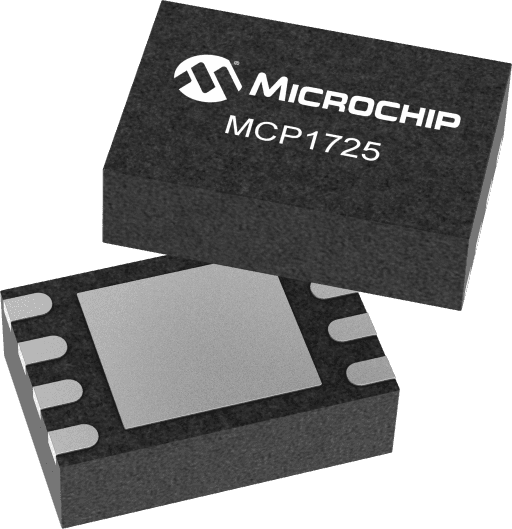

Microchip MCP1725T-3002E/SN
Manufacturer No:
MCP1725T-3002E/SN
Manufacturer:
Microchip
Package:
8-SOIC (0.154, 3.90mm Width)
Description:
500MA CMOS LDO WITH POWER GOOD \u0026 SHUTDOWN
Quantity:
In Stock :3959
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Thu, May 28 - Fri, May 29, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
MCP1725T-3002E/SN Information
Microchip MCP1725T-3002E/SN technical specifications, attributes, parameters and parts with similar specifications to Microchip MCP1725T-3002E/SN.
- Type
- Parameter
- VIN Min (V) V (volt)
- 2.3
- VIN Max V (volt)
- 6
- VOUT V (volt)
- 0.8, 1.2, 1.8, 2.5, 3.0, 3.3, 5.0
- IOUT #1 Max mA (milliampere)
- 500
- Rated IOUT Max mA (milliampere)
- 500
- Quiescent Current µA (microampere)
- 120
- Voltage Drop Typ (mV)
- 210
- Accuracy (+/-) %
- 2
- Adjustable VOUT
- Yes
- Reverse Battery
- No
- Type
- Parameter
- Bypass Pin
- No
- Current Limit
- Yes
- Shutdown EN
- Yes
- Power Good Signal
- Yes
- Thermal Shutdown
- Yes
Download datasheets and manufacturer documentation for Microchip MCP1725T-3002E/SN.
Application Notes:
Brochures:
Data Sheets:
The MCP1725 is a 500mA Low Dropout (LDO) linear regulator that provides high current and low output voltages in a very small package. The MCP1725 comes in a fixed (or adjustable) output voltage version, with an output voltage range of 0.8V to 5.0V. The 500mA output current capability, combined with the low output voltage capability, make the MCP1725 a good choice for new sub-1.8V output voltage LDO applications that have high current demands.
The MCP1725 is stable using ceramic output capacitors that inherently provide lower output noise and reduce the size and cost of the entire regulator solution. Only 1µF of output capacitance is needed to stabilize the LDO.
Using CMOS construction, the quiescent current consumed by the MCP1725 is typically less than 120µA over the entire input voltage range, making it attractive for portable computing applications that demand high output current. When shut down, the quiescent current is reduced to less than 0.1µA.
The scaled-down output voltage is internally monitored and a power good (PWRGD) output is provided when the output is within 92% of regulation (typical). An external capacitor can be used on the CDELAY pin to adjust the delay from 200µs to 300ms.
The overtemperature and short circuit current-limiting provide additional protection for the LDO during system fault conditions.
- Up to 500 mA output load current
- Low dropout voltage: 210 mV typical at 500 mA
- Output voltage from 0.8V to 5.0V, both fixed and adjustable
- Stable with 1.0 µF ceramic output capacitor
- Power good output with adjustable delay
- Low supply current: 120 µA (typ)
- Low shutdown current: 0.1 µA (typ)
- DFN-8 2x3 and SOIC-8 Pb-free packages
