ST ST3DV520EQTR

Manufacturer No:

ST3DV520EQTR

Manufacturer:

Package:

56-WFQFN Exposed Pad

Description:

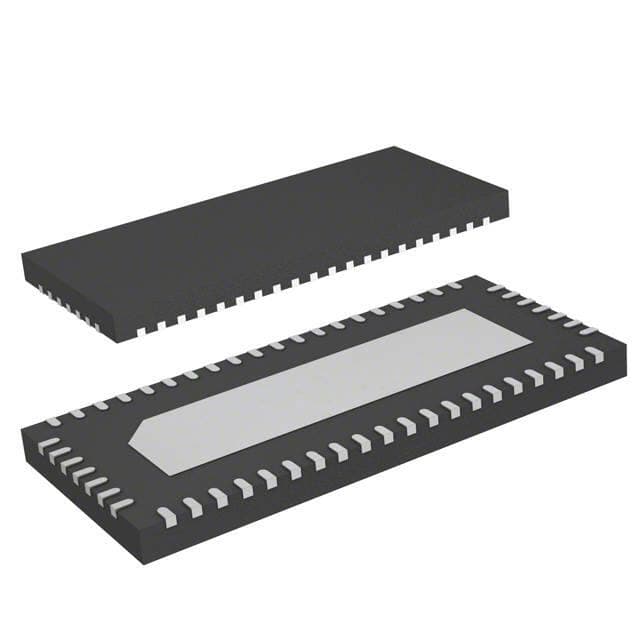

56 Termination 0.5mm Analog Switch ST3DV 56 Pin 3.3V 56-WFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

ST3DV520EQTR information

ST ST3DV520EQTR technical specifications, attributes, parameters and parts with similar specifications to ST ST3DV520EQTR.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
56-WFQFN Exposed Pad

Number of Pins
56

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Feature
DDC, LVDS

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
56

Resistance
6.5Ohm

Applications
Audio, Video

HTS Code
8542.39.00.01

Terminal Position
QUAD

Number of Functions
4

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Base Part Number
ST3DV

Number of Channels
6

Max Supply Voltage
3.6V

Min Supply Voltage
3V

Analog IC - Other Type
VIDEO MULTIPLEXER

Nominal Supply Current
500?A

Power Dissipation
500mW

Logic Function
Demultiplexer, Multiplexer

Supply Type
Single

-3db Bandwidth
600MHz

On-State Resistance (Max)
6.5Ohm

Multiplexer/Demultiplexer Circuit
2:1

Off-state Isolation-Nom
37 dB

On-state Resistance Match-Nom
0.4Ohm

Switch Circuit
SPDT

Switch-on Time-Max
15ns

Switch-off Time-Max
8.5ns

Voltage - Supply, Single (V+)
3V~3.6V

Length
11mm

Height Seated (Max)
0.8mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free
