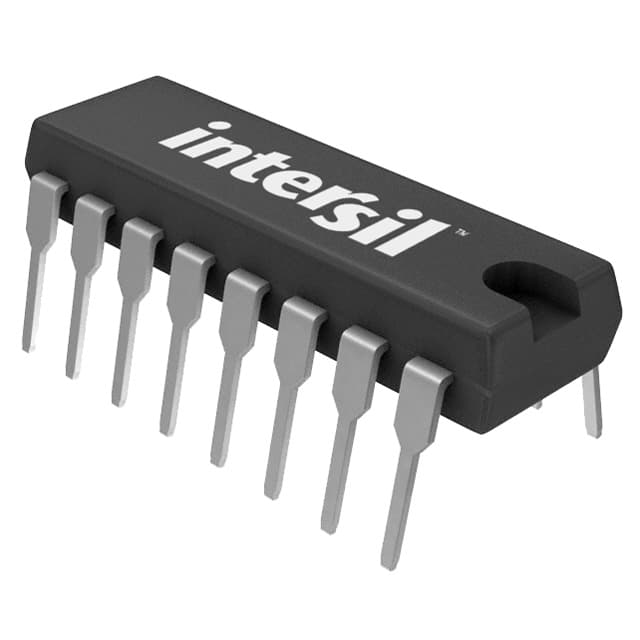

Renesas DG408DJZ
Renesas DG408DJZ

Renesas DG408DJZ

Manufacturer No:

DG408DJZ

Manufacturer:

Renesas

Package:

16-DIP (0.300, 7.62mm)

Description:

150ns, 150ns 100Ohm DUAL Analog Switches DG408 16 Pins 500pA 15V 16-DIP (0.300, 7.62mm)

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

DG408DJZ information

Renesas DG408DJZ technical specifications, attributes, parameters and parts with similar specifications to Renesas DG408DJZ.

  • Type
  • Parameter
  • Factory Lead Time
  • 8 Weeks
  • Mounting Type
  • Through Hole
  • Package / Case
  • 16-DIP (0.300, 7.62mm)
  • Surface Mount
  • NO
  • Operating Temperature
  • -40°C~85°C TA
  • Packaging
  • Tube
  • Published
  • 1999
  • JESD-609 Code
  • e3
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 16
  • Terminal Finish
  • Matte Tin (Sn) - annealed
  • Additional Feature
  • ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY
  • Technology
  • CMOS
  • Terminal Position
  • DUAL
  • Peak Reflow Temperature (Cel)
  • NOT APPLICABLE
  • Number of Functions
  • 1
  • Supply Voltage
  • 15V
  • Terminal Pitch
  • 2.54mm
  • Time@Peak Reflow Temperature-Max (s)
  • NOT APPLICABLE
  • Base Part Number
  • DG408
  • Pin Count
  • 16
  • Qualification Status
  • Not Qualified
  • Number of Channels
  • 8
  • Analog IC - Other Type
  • SINGLE-ENDED MULTIPLEXER
  • Voltage - Supply, Single/Dual (±)
  • 5V~34V ±5V~20V
  • Neg Supply Voltage-Nom (Vsup)
  • -15V
  • On-State Resistance (Max)
  • 100Ohm
  • Multiplexer/Demultiplexer Circuit
  • 8:1
  • Off-state Isolation-Nom
  • 75 dB
  • Current - Leakage (IS(off)) (Max)
  • 500pA
  • Channel Capacitance (CS(off), CD(off))
  • 3pF 26pF
  • On-state Resistance Match-Nom
  • 15Ohm
  • Switch Time (Ton, Toff) (Max)
  • 150ns, 150ns
  • Charge Injection
  • 20pC
  • Channel-to-Channel Matching (?Ron)
  • 15 ? (Max)
  • Drain to Source Resistance
  • 100Ohm
  • Height Seated (Max)
  • 5.33mm
  • Width
  • 7.62mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for Renesas DG408DJZ.

Datasheets:

ConflictMineralStatement:

DG408DJZ Overview


The electronic component is convenient to ship overseas because it is packed in a 16-DIP (0.300, 7.62mm). The advanced packaging method Tube provides high reliability. It is mounted in the position Through Hole. 8:1 is the ratio between multiplexers and demultiplexers. The operating temperature is extended to around -40°C~85°C TA. The total number of terminations is 16. As a result of its 8 channels, this electronic component provides high-quality output. An 15V voltage supply should allow the electrical part to be turned on and run. A total of 16 pins are injected into the body of the electronic part. The multiplexer consists of 1 circuits. Use DG408 to search for variants of the digital switches. With a SINGLE-ENDED MULTIPLEXER analog IC integrated into the board. Don't miss this electronic component's additional features, such as: ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY. There is 100Ohm resistance between the Drain and Source on this part.

DG408DJZ Features


8 Channels
Additional Features: ALSO OPERATE WITH 5V TO 34V SINGLE SUPPLY
Drain-to-Source resistance: 100Ohm


DG408DJZ Applications


There are a lot of Renesas Electronics America Inc.
DG408DJZ Analog Switches & Multiplexers ICs applications.


  • Low-Voltage
  • Isolation
  • Medical
  • Imaging
  • Ultrasound
  • Audio and video switching
  • Automatic test equipment
  • Precision data acquisition
  • Battery-powered systems
  • Sample-and-hold systems
