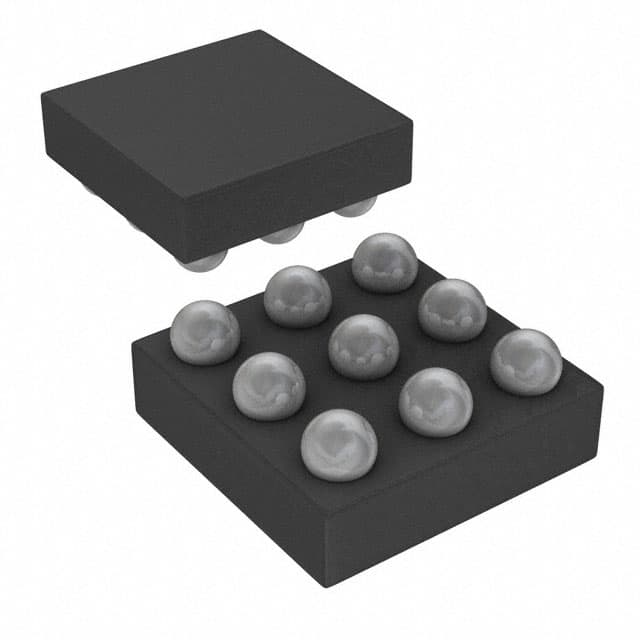

ADI SSM2537ACBZ-R7

Manufacturer No:

SSM2537ACBZ-R7

Manufacturer:

ADI

Package:

9-UFBGA, WLCSP

Description:

1.4mA mA 2.7W W Audio Amplifiers 9 pins 9-UFBGA, WLCSP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SSM2537ACBZ-R7 information

ADI SSM2537ACBZ-R7 technical specifications, attributes, parameters and parts with similar specifications to ADI SSM2537ACBZ-R7.

Type
Parameter

Lifecycle Status
PRODUCTION (Last Updated: 3 weeks ago)

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
9-UFBGA, WLCSP

Number of Pins
9

Operating Temperature
-40°C~85°C TA

Packaging
Digi-Reel®

Feature
Depop, Digital Inputs, Short-Circuit and Thermal Protection, Shutdown

Pbfree Code
no

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
9

Type
Class D

Subcategory
Audio/Video Amplifiers

Technology
CMOS

Voltage - Supply
2.5V~5.5V

Terminal Position
BOTTOM

Terminal Form
BALL

Number of Functions
1

Terminal Pitch
0.4mm

Base Part Number
SSM2537

Pin Count
9

Qualification Status
Not Qualified

Efficiency
88 %

Number of Channels
1

Operating Supply Current
1.4mA

Nominal Supply Current
1.4mA

Output Power
2.7W

Supply Type
Dual

Power Supply Rejection Ratio (PSRR)
80dB

Max Output Power
2.7W

Dual Supply Voltage
3.6V

Signal to Noise Ratio (SNR)
102 dB

Max Output Power x Channels @ Load
2.7W x 1 @ 4 ?

Load Impedance
4Ohm

REACH SVHC
No SVHC

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for ADI SSM2537ACBZ-R7.

Datasheets:

analogdevicesinc-ssm2537acbzrl-datasheets-3389.pdf

ConflictMineralStatement:

analogdeviceslineartechnology-lt5400bhms8e8trpbf-conflictmineralstatement-8771.pdf

SSM2537ACBZ-R7 Overview

A device has been embedded in 9-UFBGA, WLCSP .Ideally, the chip should be packaged in a Digi-Reel® case.In 9 terminations, the transmission line is terminated with an impedance-matching device.Amp parts uses 1-Channel (Mono) as Amp partss output.In terms of electrical devices, it belongs to the type Class D .In a computer or other communications device, 9 pins are pronged contacts.This electronic part is mounted in the way of Surface Mount .This electrical device has a supply voltage of 2.5V~5.5V .Channels 1 are present in the device.The operation of Depop, Digital Inputs, Short-Circuit and Thermal Protection, Shutdown can be ensured.There should be no temperature increase above -40°C~85°C TA .A total of 9 pins are present in it.The item belongs to Audio/Video Amplifiers .Amp parts is included in the SSM2537 family.Amp parts is recommended to mount the chip in the way of Surface Mount .This electronic part has a maximum output power of 2.7W kWh per hour.Electronic parts with Dual supply types are available.
