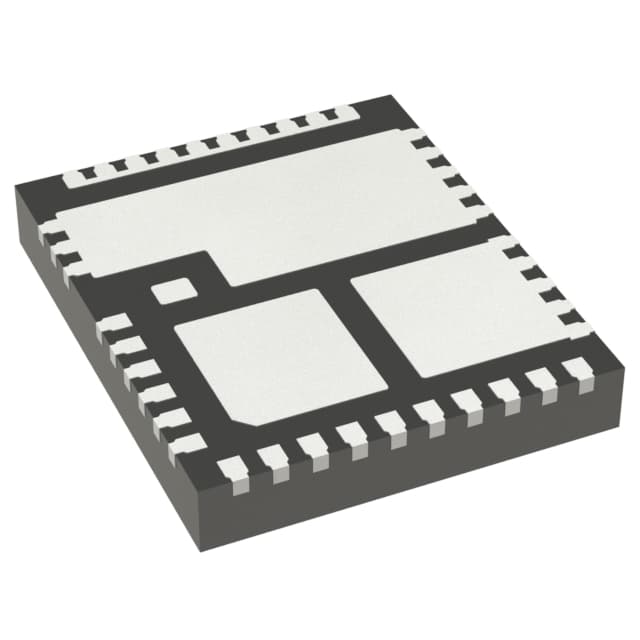

ONSEMI FDMF3170

Manufacturer No:

FDMF3170

Manufacturer:

ONSEMI

Package:

39-PowerVFQFN

Description:

Smart Power Stage (SPS) Modules with Integrated Current and Temperature Monitors - NOT RECOMMENDED FOR NEW DESIGNS

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

FDMF3170 information

ONSEMI FDMF3170 technical specifications, attributes, parameters and parts with similar specifications to ONSEMI FDMF3170.

Type
Parameter

MSL Temp (°C)
260

Container Qty.
3000

IO (A) Max
70

fmax (MHz) Max
1

Package Type
PQFN-39

MSL Type
1

VCIN (V) Typ
5

VIN (V) Typ
12

PWM Level
3.3V, 5V

Case Outline
483BF

Container Type
REEL

Download datasheets and manufacturer documentation for ONSEMI FDMF3170.

Package Drawing:

483bf.pdf

Application

CPU and Memory Voltage Regulators Compliant with Intel's VR13 Purley Systems
High-Current Multiphase Voltage Regulators
Graphics Processing Unit (GPU) Cards
Server, Storage, Telecom
DC/DC Power Module

Feature

Up to 70 A Instantaneous Peak Current Handling Capability
High-Performance, Universal Footprint, Copper-Clip 5 mm x 6 mm PQFN Package
ON Semiconductor’s PowerTrench® MOSFETs for Clean Voltage Waveforms and Reduced Ringing
30 V / 25 V Breakdown Voltage MOSFETs for Higher Long Term Reliability
Optimized FET Pair for Highest Efficiency at 10% ~ 15 % Duty Cycle
Optimized for Switching Frequencies up to 1 MHz
Integrated Current Monitoring (IMON)
Integrated Temperature Monitor (TMON)
Catastrophic Fault Detection Features
Thermal Flag (OTP) for Over-Temperature Condition
Over-Current Protection FAULT (OCP)
High-Side Short Detect FAULT
Under-Voltage Lockout (UVLO) on VCC and PVCC
ON Semiconductor Green Packaging
Pb-Free, Halogen Free/BFR Free and RoHS Compliant
