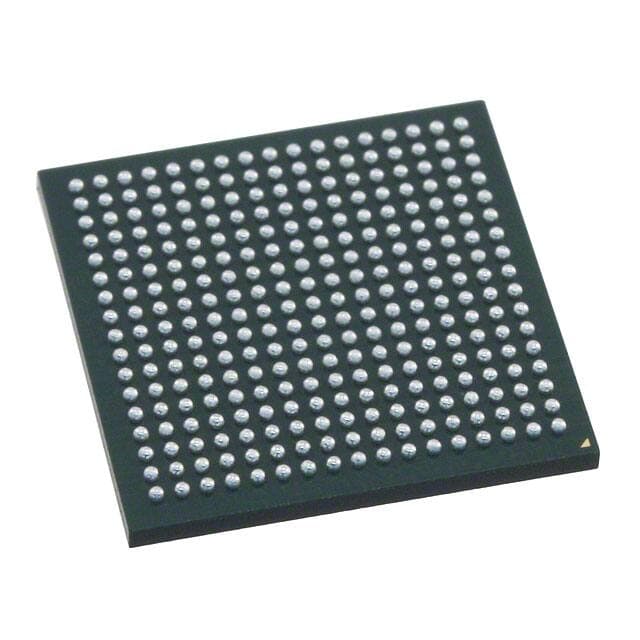

ST SPEAR300-2
ST SPEAR300-2

ST SPEAR300-2

Manufacturer No:

SPEAR300-2

Manufacturer:

ST

Package:

LFBGA, BGA289,17X17,32

Description:

Description: Embedded MPU optimized for VoIP, HMI and security applications

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SPEAR300-2 information

ST SPEAR300-2 technical specifications, attributes, parameters and parts with similar specifications to ST SPEAR300-2.

  • Type
  • Parameter
  • Part Life Cycle Code
  • Obsolete
  • Ihs Manufacturer
  • STMICROELECTRONICS
  • Part Package Code
  • BGA
  • Package Description
  • LFBGA, BGA289,17X17,32
  • Pin Count
  • 289
  • Reach Compliance Code
  • compliant
  • ECCN Code
  • 5A002.A.4
  • HTS Code
  • 8542.31.00.01
  • Samacsys Manufacturer
  • STMicroelectronics
  • Has ADC
  • YES
  • Bit Size
  • 32
  • Clock Frequency-Max
  • 24 MHz
  • DAC Channels
  • YES
  • DMA Channels
  • YES
  • JESD-30 Code
  • S-PBGA-B289
  • JESD-609 Code
  • e1
  • Length
  • 15 mm
  • Moisture Sensitivity Level
  • 3
  • Number of I/O Lines
  • 62
  • Number of Terminals
  • 289
  • Operating Temperature-Max
  • 85 °C
  • Operating Temperature-Min
  • -40 °C
  • PWM Channels
  • NO
  • Package Body Material
  • PLASTIC/EPOXY
  • Package Equivalence Code
  • BGA289,17X17,32
  • Package Shape
  • SQUARE
  • Package Style
  • GRID ARRAY, LOW PROFILE, FINE PITCH
  • Peak Reflow Temperature (Cel)
  • 260
  • Qualification Status
  • Not Qualified
  • ROM Programmability
  • FLASH
  • Seated Height-Max
  • 1.7 mm
  • Speed
  • 333 MHz
  • Supply Voltage-Max
  • 1.3 V
  • Supply Voltage-Min
  • 1.14 V
  • Supply Voltage-Nom
  • 1.2 V
  • Surface Mount
  • YES
  • Technology
  • CMOS
  • Temperature Grade
  • INDUSTRIAL
  • Terminal Finish
  • Tin/Silver/Copper (Sn/Ag/Cu)
  • Terminal Form
  • BALL
  • Terminal Pitch
  • 0.8 mm
  • Terminal Position
  • BOTTOM
  • Time@Peak Reflow Temperature-Max (s)
  • 30
  • Width
  • 15 mm
  • uPs/uCs/Peripheral ICs Type
  • MICROCONTROLLER, RISC

Download datasheets and manufacturer documentation for ST SPEAR300-2.

Datasheets:

SPEAR300-2 Description


The SPEAR300-2 internal architecture is based on several shared subsystem logic blocks interconnected through a multilayer interconnection matrix. The switch matrix structure allows different subsystem dataflow to be executed in parallel improving the core platform efficiency. High-performance master agents are directly interconnected with the memory controller reducing the memory access latency. The overall memory bandwidth assigned to each master port can be programmed and optimized through an internally efficient weighted round-robin arbitration mechanism.



SPEAR300-2 Features


ARM926EJ-S core up to 333 MHz

High-performance 8-channel DMA

Dynamic power-saving features

Configurable peripheral functions on 102 shared I/Os

32 KB ROM and 56 KB internal SRAM

Integrated real-time clock, watchdog, and system controller



SPEAR300-2 Applications


General purpose NAND Flash or NOR Flash-based devices

Digital photo frames

WiFi or IP phones (low-end or high-end)

ATA PABX systems (with or without I2S)

8-bit or 14-bit camera (with or without LCD)
