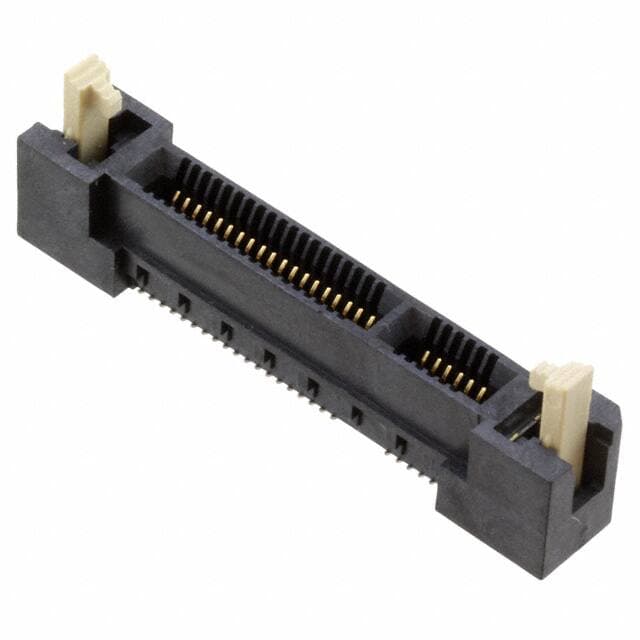

3M SPD08-050-L-RB-TR
3M SPD08-050-L-RB-TR

3M SPD08-050-L-RB-TR

Manufacturer No:

SPD08-050-L-RB-TR

Manufacturer:

3M

Package:

Description:

Female Black 0.031 0.80mm Copper Alloy 2 Rows Tape & Reel (TR) Solder Gold 50 Positions Liquid Crystal Polymer (LCP), Glass Filled

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SPD08-050-L-RB-TR information

3M SPD08-050-L-RB-TR technical specifications, attributes, parameters and parts with similar specifications to 3M SPD08-050-L-RB-TR.

  • Type
  • Parameter
  • Factory Lead Time
  • 7 Weeks
  • Contact Material
  • Copper Alloy
  • Contact Plating
  • Gold
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Housing Material
  • Polymer
  • Material - Insulation
  • Liquid Crystal Polymer (LCP), Glass Filled
  • Operating Temperature
  • -55°C~125°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • SPD08
  • Published
  • 2011
  • Feature
  • Board Guide, Latches
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • Connector Type
  • Cantilever
  • Number of Positions
  • 50
  • Max Operating Temperature
  • 125°C
  • Min Operating Temperature
  • -55°C
  • Color
  • Black
  • Number of Rows
  • 2
  • Gender
  • Female
  • Voltage - Rated
  • 50V
  • Contact Type
  • Cantilever
  • Current Rating
  • 3A
  • Contact Finish
  • Gold
  • Card Type
  • Non Specified - Dual Edge
  • Read Out
  • Dual
  • Contact Finish Thickness
  • 30.0?in 0.76?m
  • Card Thickness
  • 0.062 1.57mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for 3M SPD08-050-L-RB-TR.

Datasheets:

ConflictMineralStatement:

SPD08-050-L-RB-TR Overview


Materials were packaged according to Tape & Reel (TR)'s specs.It is recommended that you mount the device using mounting type Surface Mount.A connector socket Cantilever is used for connecting the device.Features: Board Guide, Latches.It's the SPD08 that tells you which series it is.This allows stable operation up to 125°C°C.If you want it to work reliably, it needs to be at -55°C degrees Celsius.

SPD08-050-L-RB-TR Features


SPD08 series


SPD08-050-L-RB-TR Applications


There are a lot of 3M
SPD08-050-L-RB-TR Edgeboard Connectors applications.


  • Music recording
  • Digital signal processing
  • Scientific instruments
  • Rotary encoder
  • Displaying
  • Transducer
  • Microcontrollers.
  • Digital Storage Oscilloscope
  • Scientific instruments.
  • Music reproduction technology
