ST SPC560B54L5B6E0Y

Manufacturer No:

SPC560B54L5B6E0Y

Manufacturer:

Package:

144-LQFP

Description:

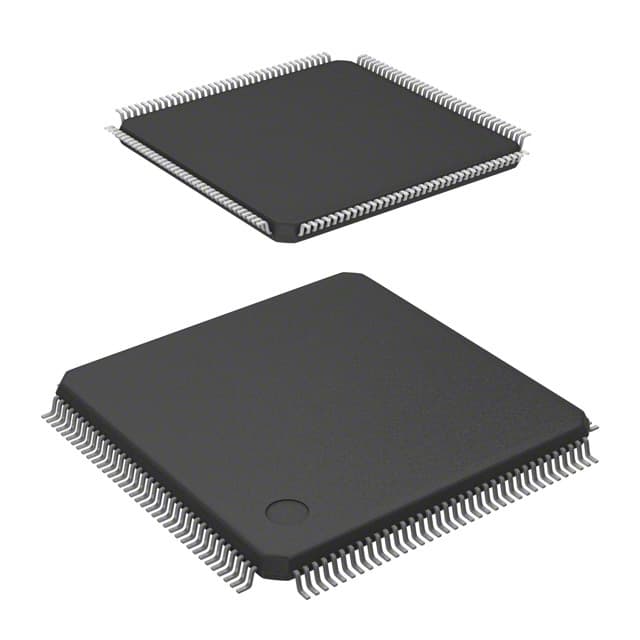

768KB 768K x 8 FLASH e200z0h 32-Bit Microcontroller Automotive, AEC-Q100, SPC56 Series SPC560B 144 Pin 64MHz 3.3V 144-LQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SPC560B54L5B6E0Y information

ST SPC560B54L5B6E0Y technical specifications, attributes, parameters and parts with similar specifications to ST SPC560B54L5B6E0Y.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 7 months ago)

Factory Lead Time
26 Weeks

Mounting Type
Surface Mount

Package / Case
144-LQFP

Surface Mount
YES

Number of Pins
144

Operating Temperature
-40°C~105°C TA

Packaging
Tray

Series
Automotive, AEC-Q100, SPC56

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
144

Additional Feature
ALSO OPERATES WITH 5 V NOMINAL SUPPLY

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Frequency
64MHz

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
SPC560B

Pin Count
144

Supply Voltage-Max (Vsup)
3.6V

Interface
CAN, I2C, LIN, SCI, SPI, UART, USART

Memory Size
768kB

Oscillator Type
Internal

Number of I/O
121

RAM Size
64K x 8

Voltage - Supply (Vcc/Vdd)
3V~5.5V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Core Processor
e200z0h

Peripherals
DMA, LVD, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
768KB 768K x 8

Connectivity
CANbus, I2C, LINbus, SCI, SPI, UART/USART

Bit Size
32

Data Converter
A/D 53x10/12b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
YES

Data Bus Width
32b

PWM Channels
YES

DAC Channels
NO

Number of Timers/Counters
2

On Chip Program ROM Width
8

Download datasheets and manufacturer documentation for ST SPC560B54L5B6E0Y.

Datasheets:

stmicroelectronics-spc560b54l3c6e0x-datasheets-4537.pdf

stmicroelectronics-spc560b54l3c6e0x-datasheets-4538.pdf

stmicroelectronics-spc560b54l3c6e0y-datasheets-3932.pdf

SPC560B54L5B6E0Y Overview

This Microcontroller comes in a 144-LQFP package. This Microcontroller has 121 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~105°C TA Operating Temperature. Microcontroller runs in Automotive, AEC-Q100, SPC56 Series. The size of the program memory of Microcontroller is 768KB 768K x 8. MCU is powered by e200z0h Core Processor. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 144 terminals. Microcontroller comes with 32 bit size. The component always operates in 3.3V supply voltage. MCU chip has YES DMA channels. The part owns 768kB memory size. You can find alternatives through the base part number SPC560B. MCU's frequency is 64MHz. The device works in YES PWM channels. The pin number of the component remains 144. It has 2 timers/counters. It counts 144 pins. To name a few, there are additional features like ALSO OPERATES WITH 5 V NOMINAL SUPPLY.
