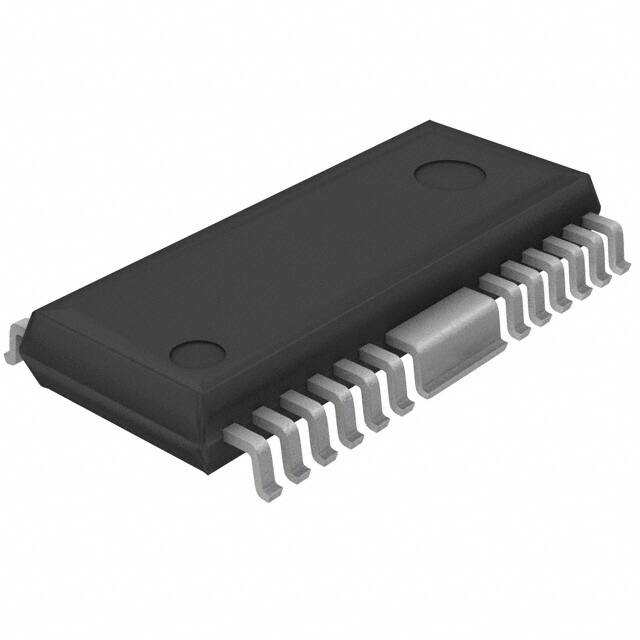

ROHM BA6868FM-E2

Manufacturer No:

BA6868FM-E2

Manufacturer:

ROHM

Package:

28-SOP (0.295, 7.50mm Width)

Description:

7.5mm mm Motor Drivers 28 5V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BA6868FM-E2 information

ROHM BA6868FM-E2 technical specifications, attributes, parameters and parts with similar specifications to ROHM BA6868FM-E2.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
28-SOP (0.295, 7.50mm Width)

Number of Pins
28

Operating Temperature
-25°C~150°C TJ

Packaging
Tape & Reel (TR)

Published
2008

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
28

ECCN Code
EAR99

Applications
General Purpose

Voltage - Supply
4.5V~6V

Terminal Position
DUAL

Terminal Form
GULL WING

Supply Voltage
5V

Terminal Pitch
0.8mm

Base Part Number
BA6868

Function
Driver - Fully Integrated, Control and Power Stage

Number of Outputs
1

Operating Supply Voltage
5V

Supply Voltage-Max (Vsup)
6V

Interface
Parallel

Analog IC - Other Type
DISK DRIVE MOTOR CONTROLLER

Output Configuration
Half Bridge (2)

Current - Output
1.8A

Logic Function
AND

Voltage - Load
4V~12V

Motor Type - AC, DC
Brushless DC (BLDC)

Width
7.5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for ROHM BA6868FM-E2.

Datasheets:

rohmsemiconductor-ba6868fme2-datasheets-4736.pdf

BA6868FM-E2 Overview

The package contains [0].There is 28-SOP (0.295, 7.50mm Width) case included with the part.A mounting position of Surface Mountis recommended for the part.Fits the component connected to General Purpose.There is a possibility of providing 4.5V~6Vvolts through the device.In terms of operating temperature, it falls within the range -25°C~150°C TJ.A motor of this type can be categorized as Brushless DC (BLDC).In this part, there are 28 terminations available.In this case, the voltage can be applied to the load at the rate of 4V~12V.Drivers controllers is recommended that this amplifier be run at 5V.There is Surface Mount recommended mounting method for this device.Maintain a 1.8Aoutput current for the part.A DISK DRIVE MOTOR CONTROLLERanalog IC is employed in this device.Using the BA6868part number, it is located.There are 28 pins on it.1outputs are available.The driver is powered by a 5Vvolt supply.

BA6868FM-E2 Features

Applications : General Purpose
Load voltage across the chip 4V~12V
base on BA6868 number
designed with 1 outputs
