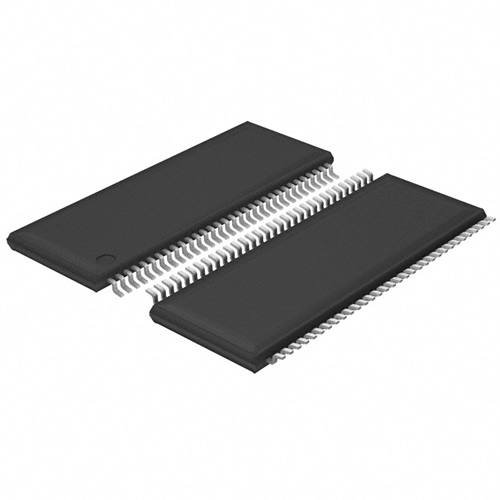

TI SN74GTL1655DGGRG4

Manufacturer No:

SN74GTL1655DGGRG4

Manufacturer:

Package:

TSSOP

Description:

64 pins Tape and Reel 3.3V V Voltage Translators & Level Shifters TSSOP 1 (Unlimited)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SN74GTL1655DGGRG4 information

TI SN74GTL1655DGGRG4 technical specifications, attributes, parameters and parts with similar specifications to TI SN74GTL1655DGGRG4.

Type
Parameter

Mount
Surface Mount

Package / Case
TSSOP

Number of Pins
64

Weight
262.601633mg

Packaging
Tape and Reel

JESD-609 Code
e4

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
64

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Technology
BICMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Frequency
160MHz

Pin Count
64

Operating Supply Voltage
3.3V

Number of Elements
1

Polarity
Non-Inverting

Max Supply Voltage
3.6V

Min Supply Voltage
3V

Number of Ports
2

Nominal Supply Current
5mA

Current - Output
100mA

Number of Bits
16

Propagation Delay
6.7 ns

Turn On Delay Time
6.7 ns

Family
GTL/TVC

Logic Function
Transceiver

Direction
Bidirectional

Output Characteristics
3-STATE

Prop. Delay@Nom-Sup
6.5 ns

Trigger Type
POSITIVE EDGE

High Level Output Current
24mA

Low Level Output Current
24mA

Control Type
INDEPENDENT CONTROL

Power Supply Current-Max (ICC)
80mA

Translation
GTL/P & LVTTL

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI SN74GTL1655DGGRG4.

SN74GTL1655DGGRG4 Overview

There is an embedded version of it in package TSSOP.Tape and Reel is the packaging method.0 terminations are used to end transmission lines.There is a voltage supply of 3.3V which powers the device.With 64 pins, it is equipped with a minimal number of connections.With 64 pins, it is designed.Level translators is designed wLevel translatorsh 16 bLevel translatorss.Voltages up to 3.6V can be supplied.A minimal voltage of 3V is needed to operate it.Surface Mount is used for mounting.2 terminations are used as the methods of ending a transmission line with a device that matches the line's characteristic impedance.GTL/TVC is the family name of this electronic device.A high efficiency supply voltage should be maintained at 3.3V.Temperatures higher than -40°C should be used for operation.Operating temperatures should be below 85°C.A total of 1 elements make up this object.In addition to its maximum design flexibility, 100mA features the lowest output current.In this case, the frequency is 160MHz.
