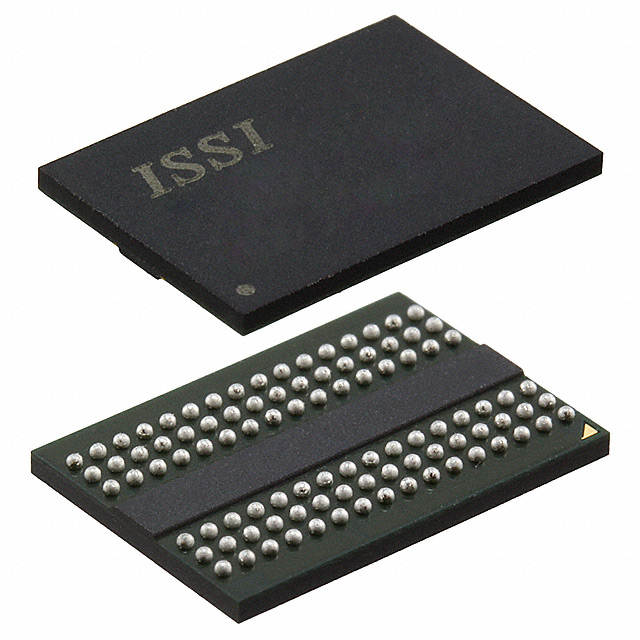

ISSI IS43TR16256AL-15HBL
ISSI IS43TR16256AL-15HBL

ISSI IS43TR16256AL-15HBL

Manufacturer No:

IS43TR16256AL-15HBL

Manufacturer:

ISSI

Package:

96-TFBGA

Description:

Surface Mount Memory IC 4 Gb kb 13mm mm 180mA mA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

IS43TR16256AL-15HBL information

ISSI IS43TR16256AL-15HBL technical specifications, attributes, parameters and parts with similar specifications to ISSI IS43TR16256AL-15HBL.

  • Type
  • Parameter
  • Factory Lead Time
  • 6 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 96-TFBGA
  • Number of Pins
  • 96
  • Operating Temperature
  • 0°C~95°C TC
  • Packaging
  • Tray
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 96
  • Additional Feature
  • PROGRAMMABLE CAS LATENCY; AUTO/SELF REFRESH
  • Technology
  • SDRAM - DDR3L
  • Voltage - Supply
  • 1.283V~1.45V
  • Terminal Position
  • BOTTOM
  • Number of Functions
  • 1
  • Supply Voltage
  • 1.35V
  • Terminal Pitch
  • 0.8mm
  • Operating Supply Voltage
  • 1.35V
  • Supply Voltage-Max (Vsup)
  • 1.45V
  • Supply Voltage-Min (Vsup)
  • 1.283V
  • Memory Size
  • 4Gb 256M x 16
  • Number of Ports
  • 1
  • Nominal Supply Current
  • 180mA
  • Memory Type
  • Volatile
  • Max Supply Current
  • 240mA
  • Clock Frequency
  • 667MHz
  • Access Time
  • 20ns
  • Memory Format
  • DRAM
  • Memory Interface
  • Parallel
  • Data Bus Width
  • 16b
  • Organization
  • 256MX16
  • Memory Width
  • 16
  • Write Cycle Time - Word, Page
  • 15ns
  • Address Bus Width
  • 18b
  • Density
  • 4 Gb
  • Length
  • 13mm
  • Height Seated (Max)
  • 1.2mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ISSI IS43TR16256AL-15HBL.

IS43TR16256AL-15HBL Overview


Volatile is the type of memory it has. There is a Tray case available. The 96-TFBGA case contains it. The chip has an 4Gb 256M x 16 memory. This device uses a DRAM-format memory, which is of mainstream design. A wide operating temperature range makes this device ideal for a variety of demanding applications. A voltage of 1.283V~1.45V can be supplied to memory ics. Its recommended mounting type is Surface Mount. The chip has 96 terminations. For a comprehensive working procedure, this part supports as many as 1 functions. In order to operate this memory device, it must be supplied with 1.35V of power. It is important to note that the memory has a clock frequency rotation within the range of 667MHz. The memory device is enclosed in a package with an 96-pin connector. A voltage of 1.35V is noted as the operating supply voltage for this memory. In this chip, Surface Mount mounting is used, a straightforward, high-efficiency mounting method. In terms of its nominal supply current, this memory component is rated at 180mA. Despite all its merits, this chip also features PROGRAMMABLE CAS LATENCY; AUTO/SELF REFRESH to boost system performance. A memory address is accessed through 1 ports on this chip. A maximum current of 240mA can be used to run it.

IS43TR16256AL-15HBL Features


Package / Case: 96-TFBGA
96 Pins
Operating Supply Voltage:1.35V
Additional Feature:PROGRAMMABLE CAS LATENCY; AUTO/SELF REFRESH


IS43TR16256AL-15HBL Applications


There are a lot of ISSI, Integrated Silicon Solution Inc
IS43TR16256AL-15HBL Memory applications.


  • cell phones
  • eSRAM
  • mainframes
  • multimedia computers
  • networking
  • personal computers
  • servers
  • supercomputers
  • telecommunications
  • workstations,
