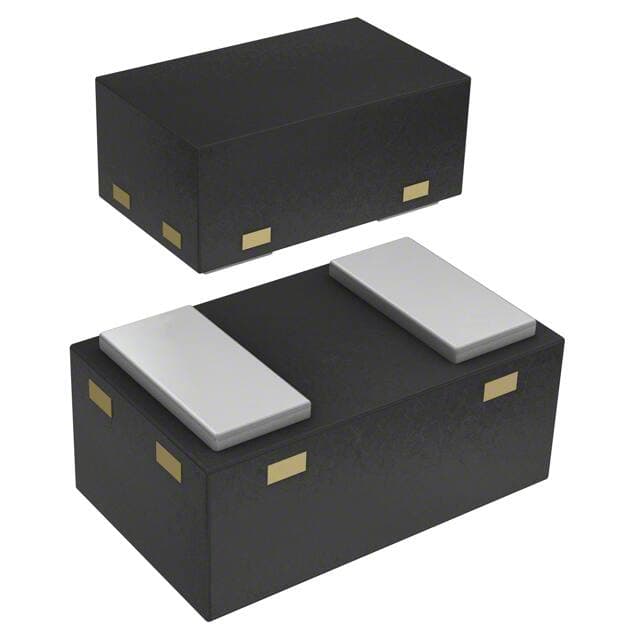

Skyworks SMP1320-040LF

Manufacturer No:

SMP1320-040LF

Manufacturer:

Skyworks

Package:

0402 (1005 Metric)

Description:

PIN - Single 0.25pF @ 30V 1MHz -65°C~150°C TA 2 Terminations SILICON 260 BOTTOM Tape & Reel (TR) 0402 (1005 Metric)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SMP1320-040LF information

Skyworks SMP1320-040LF technical specifications, attributes, parameters and parts with similar specifications to Skyworks SMP1320-040LF.

Type
Parameter

Factory Lead Time
11 Weeks

Mount
Surface Mount

Package / Case
0402 (1005 Metric)

Number of Pins
2

Diode Element Material
SILICON

Operating Temperature
-65°C~150°C TA

Packaging
Tape & Reel (TR)

Published
2011

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

ECCN Code
EAR99

Type
Switch

HTS Code
8541.10.00.80

Subcategory
PIN Diodes

Technology
POSITIVE-INTRINSIC-NEGATIVE

Terminal Position
BOTTOM

Peak Reflow Temperature (Cel)
260

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
SMP1320-040

Pin Count
2

Case Code (Metric)
1005

Case Code (Imperial)
0402

Max Current Rating
150mA

Element Configuration
Single

Diode Type
PIN - Single

Power Dissipation
750mW

Forward Current
150mA

Forward Voltage
850mV

Capacitance @ Vr, F
0.25pF @ 30V 1MHz

Reverse Voltage
50V

Reverse Voltage (DC)
50V

Frequency Band
S B

Diode Capacitance-Nom
0.23pF

Resistance @ If, F
900mOhm @ 10mA 100MHz

Minority Carrier Lifetime-Nom
0.4 ?s

Diode Res Test Current
10mA

Diode Res Test Frequency
100MHz

Diode Forward Resistance-Max
0.9Ohm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Skyworks SMP1320-040LF.

Datasheets:

skyworkssolutionsinc-sky6501770lf-datasheets-7625.pdf

SMP1320-040LF Overview

The forward voltage of the system should remain above 850mV.

SMP1320-040LF Features

SMP1320-040LF Applications

There are a lot of Skyworks Solutions Inc.
SMP1320-040LF applications of RF diodes.

Clamping circuits
Diode ring mixer
RF detector
RF voltage doubler
Wearables
Smart metering
Set top boxes
RF attenuators and switches
Low-loss, high-power limiters
Receiver protectors
