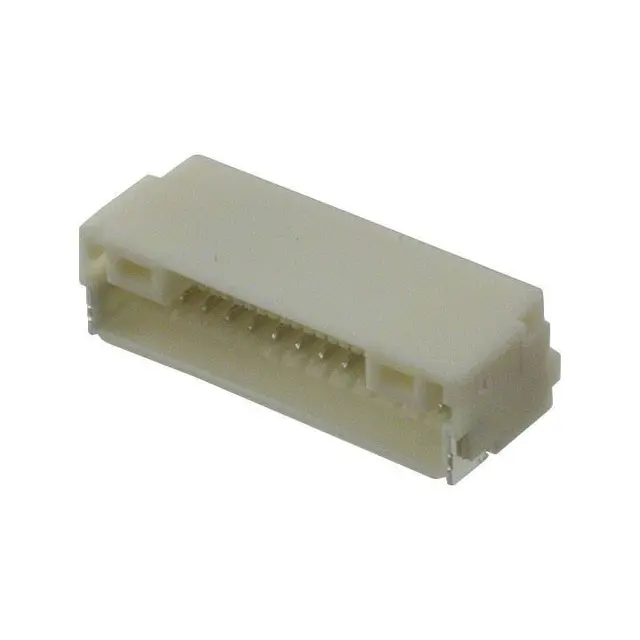

JST SM14B-NSHSS-TB(LF)(SN)

Manufacturer No:

SM14B-NSHSS-TB(LF)(SN)

Manufacturer:

Package:

Description:

NSH Series 1-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon 14-Position Board to Cable/Wire 0.173 4.40mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SM14B-NSHSS-TB(LF)(SN) information

JST SM14B-NSHSS-TB(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST SM14B-NSHSS-TB(LF)(SN).

Type
Parameter

Factory Lead Time
18 Weeks

Contact Material
Copper Alloy

Contact Plating
Copper, Tin

Mount
Surface Mount

Mounting Type
Surface Mount, Right Angle

Insulation Material
Polyamide (PA), Nylon

Housing Material
Polyamide

Operating Temperature
-25°C~85°C

Packaging
Tape & Reel (TR)

Series
NSH

Published
2015

JESD-609 Code
e3

Feature
Solder Retention

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
14

Number of Rows
1

Voltage - Rated
50V

Additional Feature
SIDE ENTRY

HTS Code
8536.69.40.40

Contact Finish - Mating
Tin

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Total Number of Contacts
14

Orientation
Right Angle

Depth
6.8mm

Insulation Height
0.173 4.40mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Pitch - Mating
0.039 1.00mm

Insulation Color
Natural

Shrouding
Shrouded - 4 Wall

UL Flammability Code
94V-0

Contact Resistance
50mOhm

Max Voltage Rating (AC)
50V

Max Current Rating
1A

Length
16mm

Material Flammability Rating
UL94 V-0

Download datasheets and manufacturer documentation for JST SM14B-NSHSS-TB(LF)(SN).

Datasheets:

jstsalesamericainc-asshlsshl28w152-datasheets-0666.pdf

SM14B-NSHSS-TB(LF)(SN) Overview

Currently, it is packaged in Header.The mounting type of the device is Surface Mount, Right Angle.A Tape & Reel (TR) case is used to package the product.A product of the NSH Series, it belongs to the range of products of that series.Furthermore, there are other features available, such as SIDE ENTRY, to name a few.A number of features make the Solder Retention feature more powerful.Surface Mount represents the mounting point for the part.-25°C~85°C Operating Temperature is the default operating temperature for the device.
