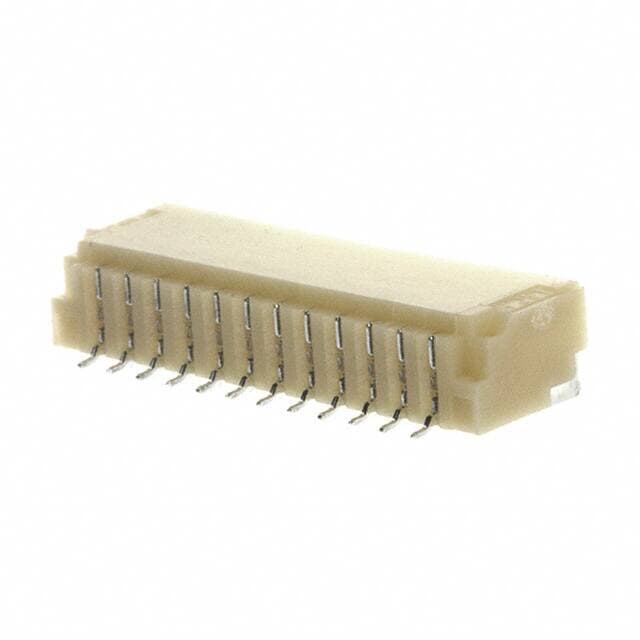

JST SM12B-SRSS-TB(LF)(SN)

Manufacturer No:

SM12B-SRSS-TB(LF)(SN)

Manufacturer:

Package:

Description:

SR Series 1-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount, Right Angle Tin Polyamide (PA), Nylon 12-Position Board to Cable/Wire 0.114 2.90mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SM12B-SRSS-TB(LF)(SN) information

JST SM12B-SRSS-TB(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST SM12B-SRSS-TB(LF)(SN).

Type
Parameter

Factory Lead Time
18 Weeks

Contact Material
Copper Alloy

Mount
Surface Mount, Termination

Mounting Type
Surface Mount, Right Angle

Contact Shape
Square

Insulation Material
Polyamide (PA), Nylon

Housing Material
Nylon

Operating Temperature
-25°C~85°C

Packaging
Tape & Reel (TR)

Series
SR

Published
2005

JESD-609 Code
e2

Feature
Solder Retention

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
12

Number of Rows
1

Gender
Male

Additional Feature
SIDE ENTRY

HTS Code
8536.69.40.40

Contact Finish - Mating
Tin

MIL Conformance
NO

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Total Number of Contacts
12

Orientation
Right Angle

Depth
4.95mm

Insulation Height
0.114 2.90mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Current Rating
1A

Pitch - Mating
0.039 1.00mm

Shrouding
Shrouded - 4 Wall

UL Flammability Code
94V-0

Housing Color
Natural

Contact Resistance
40mOhm

Max Voltage Rating (AC)
50V

Max Current Rating
1A

Height
2.9mm

Download datasheets and manufacturer documentation for JST SM12B-SRSS-TB(LF)(SN).

Datasheets:

sparkfunelectronics-prt14417-datasheets-6623.pdf

SM12B-SRSS-TB(LF)(SN) Description

A header is an electrical connector consisting of one or more rows of pins. Headers come in two forms: male (pin) and female (socket). Headers are often used on PCB's (printed circuit boards) for making connections.

SM12B-SRSS-TB(LF)(SN) Features

·Compact insulation displacement connector

· Header designed for vacuum pick and place robotics

o Twin U-slot insulation displacement section

·3-point grip construction

· Through-hole type (SZ)

SM12B-SRSS-TB(LF)(SN) Applications

Mobile Phones

PDAS

Portable electronic devices
