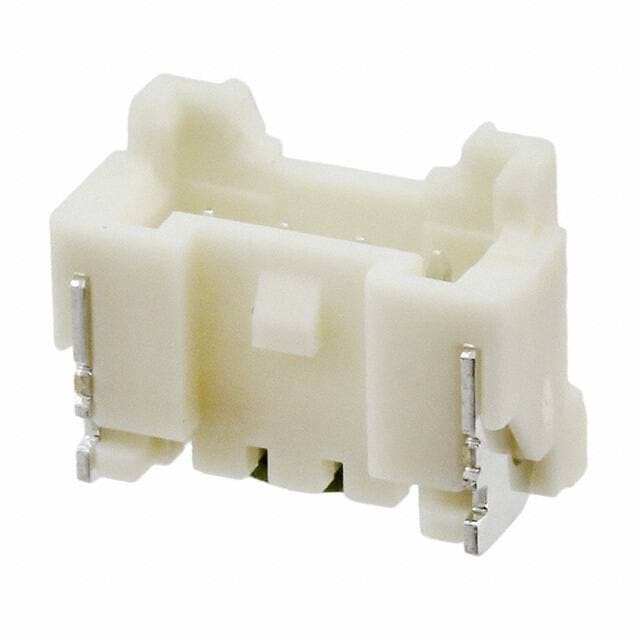

JST BM04B-PASS-1-TFT(LF)(SN)

Manufacturer No:

BM04B-PASS-1-TFT(LF)(SN)

Manufacturer:

Package:

Description:

PA Series 1-Row Header Solder Copper Alloy Tape & Reel (TR) Surface Mount Tin Polyamide (PA), Nylon 4-Position Board to Cable/Wire 0.350 8.89mm Height

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

BM04B-PASS-1-TFT(LF)(SN) information

JST BM04B-PASS-1-TFT(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST BM04B-PASS-1-TFT(LF)(SN).

Type
Parameter

Factory Lead Time
16 Weeks

Contact Material
Copper Alloy

Mount
Surface Mount

Mounting Type
Surface Mount

Contact Shape
Square

Insulation Material
Polyamide (PA), Nylon

Operating Temperature
-25°C~85°C

Packaging
Tape & Reel (TR)

Series
PA

Published
2008

JESD-609 Code
e3

Feature
Board Guide, Pick and Place, Solder Retention

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder

ECCN Code
EAR99

Connector Type
Header

Number of Positions
4

Number of Rows
1

Gender
Male

Voltage - Rated
250V

Fastening Type
Locking Ramp

Contact Finish - Mating
Tin

DIN Conformance
NO

IEC Conformance
NO

Filter Feature
NO

Contact Type
Male Pin

Mixed Contacts
NO

Option
GENERAL PURPOSE

Total Number of Contacts
4

Terminal Pitch
2mm

Insulation Height
0.350 8.89mm

Style
Board to Cable/Wire

Number of Positions Loaded
All

Current Rating
3A

Pitch - Mating
0.079 2.00mm

Insulation Color
Natural

Shrouding
Shrouded - 4 Wall

Height
8.9mm

Stack Height (Mating)
11.1mm 16mm 16.2mm

Material Flammability Rating
UL94 V-0

REACH SVHC
Unknown

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for JST BM04B-PASS-1-TFT(LF)(SN).

Datasheets:

jstsalesamericainc-spal001tp05-datasheets-3025.pdf

BM04B-PASS-1-TFT(LF)(SN) Overview

The product is packaged in Header.This device is mounted in the Surface Mount position.It has been determined that a Tape & Reel (TR) case is necessary to package the product.There is a product in the PA Series.There are a number of advantages to its Board Guide, Pick and Place, Solder Retention feature.Part Surface Mount is mounted to the part.As a result, the device runs at -25°C~85°C Operating Temperature.

BM04B-PASS-1-TFT(LF)(SN) Features

PA series

BM04B-PASS-1-TFT(LF)(SN) Applications

There are a lot of JST Sales America Inc.
BM04B-PASS-1-TFT(LF)(SN) Rectangular Connectors applications.

Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
Data Technology
