JST SM04B-SRSS-TB(LF)(SN)
JST SM04B-SRSS-TB(LF)(SN)

JST SM04B-SRSS-TB(LF)(SN)

Manufacturer No:

SM04B-SRSS-TB(LF)(SN)

Manufacturer:

JST

Package:

Description:

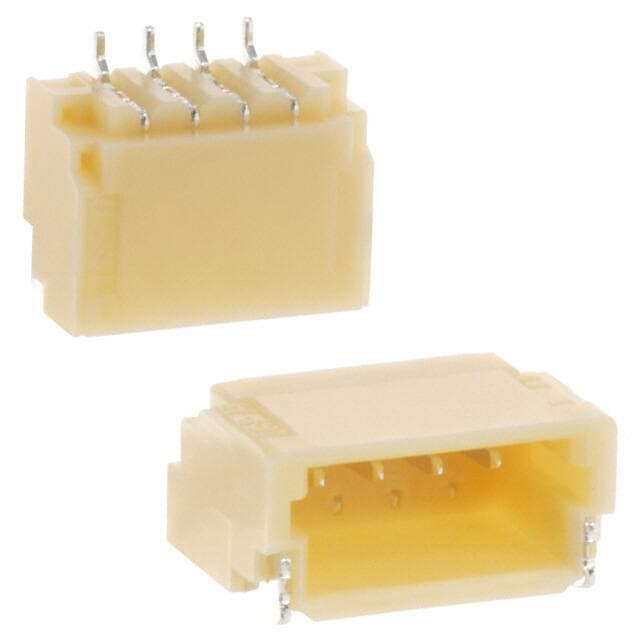

SR Series 1-Row Header Solder Tape & Reel (TR) Surface Mount, Right Angle 4-Position Board to Cable/Wire 0.114 2.90mm Height

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SM04B-SRSS-TB(LF)(SN) information

JST SM04B-SRSS-TB(LF)(SN) technical specifications, attributes, parameters and parts with similar specifications to JST SM04B-SRSS-TB(LF)(SN).

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount, Right Angle
  • Number of Pins
  • 2
  • Contact Shape
  • Square
  • Housing Material
  • Nylon
  • Contact Finish Mating
  • Tin
  • Contact Materials
  • Copper Alloy
  • Insulation Materials
  • Polyamide (PA), Nylon
  • Operating Temperature
  • -25°C~85°C
  • Packaging
  • Tape & Reel (TR)
  • Series
  • SR
  • Published
  • 2010
  • JESD-609 Code
  • e2
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Termination
  • Solder
  • ECCN Code
  • EAR99
  • Connector Type
  • Header
  • Number of Positions
  • 4
  • Number of Rows
  • 1
  • Additional Feature
  • SIDE ENTRY
  • Fastening Type
  • Push-Pull
  • DIN Conformance
  • NO
  • IEC Conformance
  • NO
  • Filter Feature
  • NO
  • Contact Type
  • Male Pin
  • Mixed Contacts
  • NO
  • Option
  • GENERAL PURPOSE
  • Total Number of Contacts
  • 4
  • Orientation
  • Right Angle
  • Depth
  • 4.95mm
  • Insulation Height
  • 0.114 2.90mm
  • Style
  • Board to Cable/Wire
  • Number of Positions Loaded
  • All
  • Current Rating
  • 1A
  • Pitch - Mating
  • 0.039 1.00mm
  • Shrouding
  • Shrouded - 4 Wall
  • Lead Pitch
  • 1mm
  • Housing Color
  • Natural
  • Contact Resistance
  • 40mOhm
  • Max Voltage Rating (AC)
  • 50V
  • Max Current Rating
  • 1A
  • Max Voltage Rating (DC)
  • 50V
  • Features
  • Solder Retention
  • Height
  • 2.9mm

Download datasheets and manufacturer documentation for JST SM04B-SRSS-TB(LF)(SN).

Datasheets:

SM04B-SRSS-TB(LF)(SN)                      Description

A header is an electrical connector consisting of one or more rows of pins. Headers come in two forms: male (pin) and female (socket). Headers are often used on PCB's (printed circuit boards) for making connections.


SM04B-SRSS-TB(LF)(SN)                     Features

Compact, low profile design

Compatible with the SR insulation displacement connectors Housing lances


SM04B-SRSS-TB(LF)(SN)                    Applications

 Automotive Engine Control

„ Powertrain Management

„ Solenoid and Motor Drivers

„ Integrated Starter/alternator

„ Primary Switch for 12V Systems
