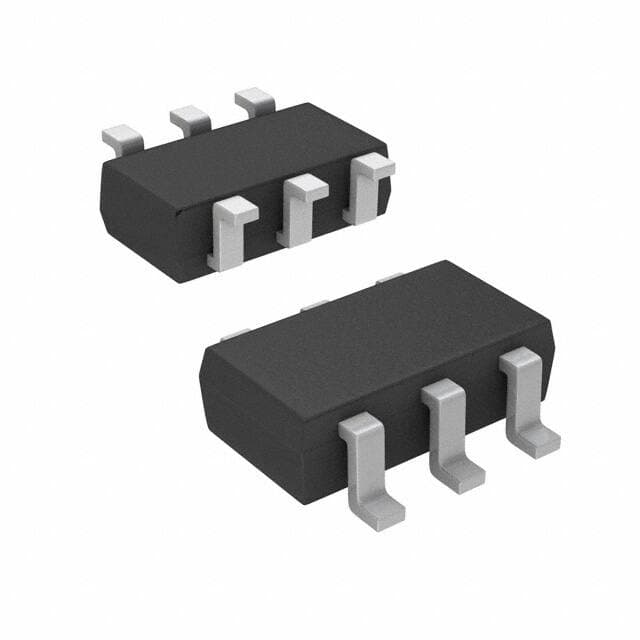

VISHAY SI3865BDV-T1-E3
Manufacturer No:
SI3865BDV-T1-E3
Manufacturer:
Package:
SOT-23-6 Thin, TSOT-23-6
Description:
P-Channel 0.95mm PMIC SI3865 6 Pin 2.5V SOT-23-6 Thin, TSOT-23-6
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
SI3865BDV-T1-E3 information
VISHAY SI3865BDV-T1-E3 technical specifications, attributes, parameters and parts with similar specifications to VISHAY SI3865BDV-T1-E3.
- Type
- Parameter
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- SOT-23-6 Thin, TSOT-23-6
- Number of Pins
- 6
- Operating Temperature
- -55°C~150°C TJ
- Packaging
- Tape & Reel (TR)
- Published
- 2008
- JESD-609 Code
- e3
- Feature
- Slew Rate Controlled
- Pbfree Code
- yes
- Part Status
- Obsolete
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 6
- ECCN Code
- EAR99
- Resistance
- 175mOhm
- Terminal Finish
- Matte Tin (Sn)
- Subcategory
- Peripheral Drivers
- Max Power Dissipation
- 830mW
- Technology
- MOS
- Terminal Form
- GULL WING
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 2.5V
- Terminal Pitch
- 0.95mm
- Time@Peak Reflow Temperature-Max (s)
- 40
- Base Part Number
- SI3865
- Pin Count
- 6
- Number of Outputs
- 1
- Output Type
- P-Channel
- Number of Elements
- 2
- Supply Voltage-Max (Vsup)
- 8V
- Interface
- On/Off
- Element Configuration
- Dual
- Output Configuration
- High Side
- Power Dissipation
- 830mW
- Output Current
- 2.9A
- Switch Type
- General Purpose
- Drain to Source Voltage (Vdss)
- 8V
- Continuous Drain Current (ID)
- 2.9A
- Ratio - Input:Output
- 1:1
- Voltage - Load
- 1.8V~8V
- Driver Number of Bits
- 1
- Drain to Source Breakdown Voltage
- 8V
- Output Peak Current Limit-Nom
- 1A
- Rds On (Typ)
- 45m ?
- Drain to Source Resistance
- 60mOhm
- Built-in Protections
- TRANSIENT
Download datasheets and manufacturer documentation for VISHAY SI3865BDV-T1-E3.
RohsStatement:
SI3865BDV-T1-E3 Overview
Tape & Reel (TR) is the way it's packaged.Package SOT-23-6 Thin, TSOT-23-6 contains it.The lighting driver has the mounting type Surface Mount.It owns the General Purpose switch type.Keeping the temperature at -55°C~150°C TJ ensures reliable operation.The LED driver has 1 outputs.Voltage output is P-Channel volts at maximum.Features of the lighting driver are Slew Rate Controlled.The SI3865 family contains this object.It has a total of 6 terminations.For operation, we use the 6 pins.It has 1 functions.Supply voltages of 2.5V allow for high efficiency.It is mounted in the way of Surface Mount.In total, it has 6 pins.175mOhm is the resistance of the lighting driver.When this case is used, the output current is set to 2.9A.Self-contained LED driver with Peripheral Drivers capacity in an econtainer.The Vsup value (maximum supply voltage) is set to 8V.As a whole, there are 2 elements.
SI3865BDV-T1-E3 Features
Supplied from 2.5V
Resistance of 175mOhm
SI3865BDV-T1-E3 Applications
There are a lot of Vishay Siliconix
SI3865BDV-T1-E3 Power Switches ICs applications.
- USB Power Distribution
- Notebook PC
- Telecom and Network Systems
- PC Card Hot Swap
- Storage Drives
- Portable/Handheld Devices
- Wireless/Networking Cards
- Low Voltage I/O System Power
- Hard Disk Drives
- Solid-State Drives
