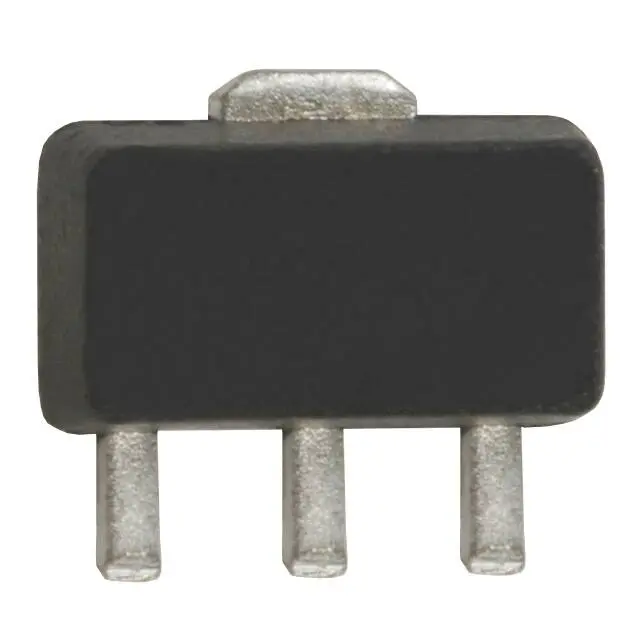

Qorvo SGA-9189

Manufacturer No:

SGA-9189

Manufacturer:

Qorvo

Package:

TO-243AA

Description:

11.2dB ~ 13.2dB WLL, WLAN WIDE BAND MEDIUM POWER Tape & Reel (TR) 0Hz~3GHz 5.5V P1dB:23.5dBm ~ 25.5dBm 2.6dB 195mA Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SGA-9189 information

Qorvo SGA-9189 technical specifications, attributes, parameters and parts with similar specifications to Qorvo SGA-9189.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
TO-243AA

Packaging
Tape & Reel (TR)

Published
2012

JESD-609 Code
e0

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Terminal Finish
Tin/Lead (Sn/Pb)

Voltage - Supply
5.5V

Construction
COMPONENT

Frequency
0Hz~3GHz

Operating Temperature (Max)
85°C

Operating Temperature (Min)
-40°C

Test Frequency
1.95GHz

Operating Supply Current
195mA

Gain
11.2dB ~ 13.2dB

RF/Microwave Device Type
WIDE BAND MEDIUM POWER

RF Type
WLL, WLAN

Characteristic Impedance
50Ohm

Noise Figure
2.6dB

P1dB
23.5dBm ~ 25.5dBm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Qorvo SGA-9189.

SGA-9189 Overview

Cost-effective WIDE BAND MEDIUM POWER RF/Microwave Amplifier.RF Type WLL, WLAN from the RF amplifier.The RF Amp' packaging Tape & Reel (TR) provides high reliability.The RF power Amplifier is convenient for international shipping since it is packaged in TO-243AA.mount Amplifiers RFing in Surface Mount is recommended.It is capable of supplying a voltage of 5.5V volts.The supply current needs to be operated in the range of 195mA.

SGA-9189 Features

WIDE BAND MEDIUM POWER RF/Microwave Amplifier
RF Type WLL, WLAN
5.5V voltage

SGA-9189 Applications

There are a lot of RFMD
SGA-9189 RF Amplifiers applications.

Personal Navigation Device (PND)
Cellular Phones with GPS
Notebook PC
Ultra-Mobile PC
Recreational
Marine Navigation
Avionics
GPS
GLONASS
BeiDou

User Guide
