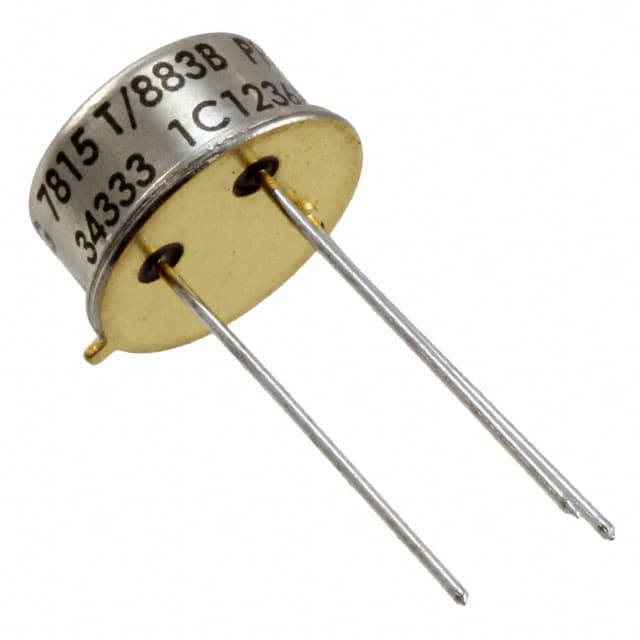

Microchip SG7815T-883B

Manufacturer No:

SG7815T-883B

Manufacturer:

Microchip

Package:

TO-39-3 Lens Top Metal Can

Description:

Positive Voltage Regulators (non-LDO)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SG7815T-883B information

Microchip SG7815T-883B technical specifications, attributes, parameters and parts with similar specifications to Microchip SG7815T-883B.

Type
Parameter

Driver Type
Hi Rel Linear Voltage Regulators

Linear Regulator Type
Positive Fixed

Line Regulation (%)
0.1

Load Regulation(%)
0.2

Thermal Shutdown
Yes

Rated IOUT Max
2200

VIN Max V (volt)
50

VOUT (V)
15

Voltage Drop Typ (mV)
2

Tol Typ %
4

PSRR 1 kHz (dB)
60

Download datasheets and manufacturer documentation for Microchip SG7815T-883B.

Certifications:

fbe317a337f5cae2bb63be6283ce3132.pdf

7cdafadbe2f5dc659ccb196b22aabce4.pdf

Data Sheets:

f9db399521889716dd30067548065268.pdf

The SG78xxA/SG78xx series of positive regulators offer self-contained, fixed-voltage capability with up to 1.5 A of load current and input voltage up to 50 V (SG78xxA series only). These units feature a unique on-chip trimming system to set the output voltages to within ±1.5% of nominal on the SG78xxA series with ±2.0% on the SG78xx series. The SG78xxA versions also offer much improved line and load regulation characteristics. Utilizing an improved bandgap reference design, problems such as drift in output voltage and large changes in the line and load regulation, that are normally associated with the Zener diode references have been eliminated. All protective features of thermal shutdown, current limiting, and safe-area control have been designed into these units and since these regulators require only a small output capacitor for satisfactory performance, ease of application is assured. Although designed as fixed-voltage regulators, the output voltage can be increased through the use of a simple voltage divider. The low quiescent drain current of the device ensures good regulation when this method is used. Product is available in hermetically sealed TO-257 (both case grounded ‘G’ and isolated ‘IG’), TO-3, TO-39 and leadless chip carrier (LCC) packages.

Microchip Ordering Part Standard Microcircuit Drawing (SMD)

SG7815K-JAN Cross Reference M38510/10708BYA

SG7815K-JAN Cross Reference M38510/10708BYX

SG7815T-JAN Cross Reference M38510/10704BXA

SG7815T-JAN Cross Reference M38510/10704BXX

Output Voltage Set Internally to ±1.5% on SG78xxA
Input Voltage Range to 50 V max on SG78xxA
2 V Input-Output Differential
Excellent Line and Load Regulation
Fold back Current Limiting
Thermal Overload Protection
Voltages Available: 5 V, 12 V, 15 V
Contact Factory for Other Voltage Options
Available in Surface Mount Package
