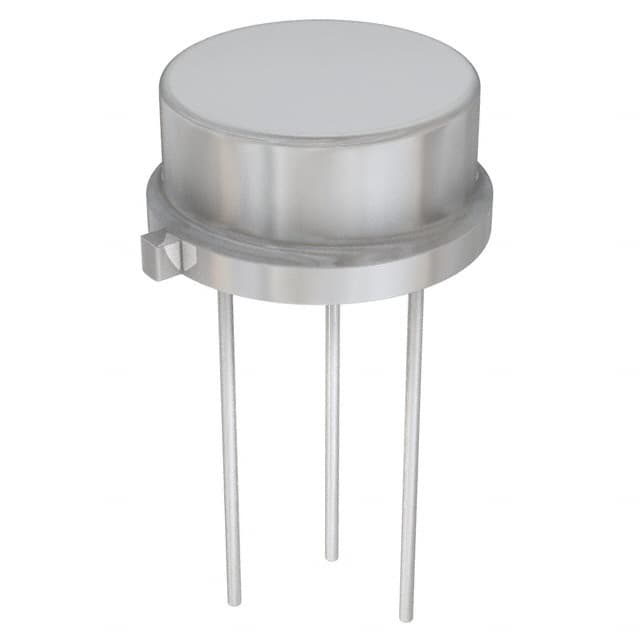

Microchip SG723T-JAN

Manufacturer No:

SG723T-JAN

Manufacturer:

Microchip

Package:

TO-205AD, TO-39-3 Metal Can

Description:

Positive Voltage Regulators (non-LDO)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SG723T-JAN information

Microchip SG723T-JAN technical specifications, attributes, parameters and parts with similar specifications to Microchip SG723T-JAN.

Type
Parameter

Driver Type
Hi Rel Linear Voltage Regulators

Linear Regulator Type
Positive Adjustible

Line Regulation (%)
0.01

Load Regulation(%)
0.03

Rated IOUT Max
150

VIN Min (V) V (volt)
9.5

VIN Max V (volt)
40

VOUT (V)
Adj

Voltage Drop Typ (mV)
3

PSRR 1 kHz (dB)
74

Download datasheets and manufacturer documentation for Microchip SG723T-JAN.

Data Sheets:

6e72a2929a096329b0d4d1e0d7c0ef70.pdf

This monolithic voltage regulator is designed for use with either positive or negative supplies as a series, shunt, switching, or floating regulator with currents up to 150 mA. Higher current requirements may be accommodated through the use of external NPN or PNP power transistors. This device consists of a temperature compensated reference amplifier, error amplifier, power series pass transistor, current limit, and remote shutdown circuitry. The SG723 will operate over the full military ambient temperature range of -55°C to 125°C.

Microchip Ordering Part Standard Microcircuit Drawing (SMD)

SG723F-JAN Cross Reference M38510/10201BHA

SG723F-JAN Cross Reference M38510/10201BHX

SG723J-JAN Cross Reference M38510/10201BCA

SG723J-JAN Cross Reference M38510/10201BCX

SG723T-JAN Cross Reference M38510/10201BIA

SG723T-JAN Cross Reference M38510/10201BIX

Positive or Negative Supply Operation
Series, Shunt, Switching or Floating Operation
Low Line and Load Regulation
Output Adjustable from 2 V to 37 V
Output Current to 150 mA
Low Standby Current Drain
0.002%/°C Average Temperature Variation
