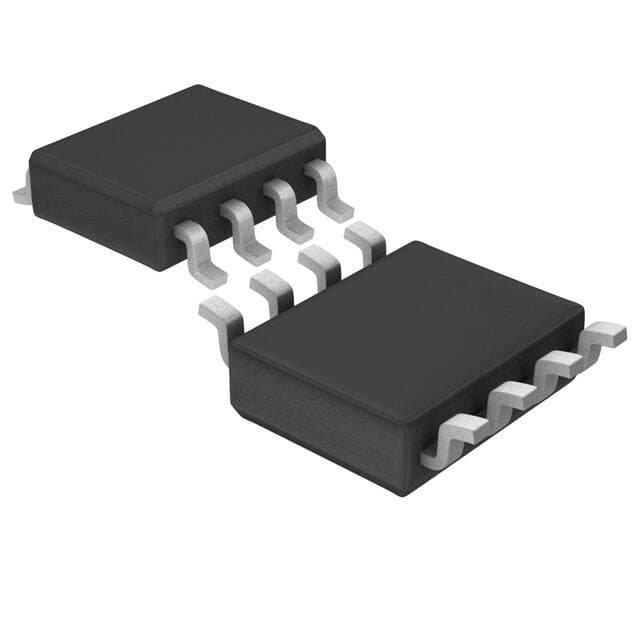

ADI LT1719IS8
ADI LT1719IS8

ADI LT1719IS8

Manufacturer No:

LT1719IS8

Manufacturer:

ADI

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

Surface Mount Tube 7 ns ?s Linear Comparators 2009

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LT1719IS8 information

ADI LT1719IS8 technical specifications, attributes, parameters and parts with similar specifications to ADI LT1719IS8.

  • Type
  • Parameter
  • Factory Lead Time
  • 14 Weeks
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 8-SOIC (0.154, 3.90mm Width)
  • Surface Mount
  • YES
  • Operating Temperature
  • -40°C~85°C
  • Packaging
  • Tube
  • Series
  • UltraFast?
  • Published
  • 2009
  • JESD-609 Code
  • e0
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 8
  • ECCN Code
  • EAR99
  • Type
  • General Purpose
  • Terminal Finish
  • Tin/Lead (Sn/Pb)
  • Subcategory
  • Comparator
  • Technology
  • BIPOLAR
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 235
  • Number of Functions
  • 1
  • Supply Voltage
  • 5V
  • Reach Compliance Code
  • not_compliant
  • Time@Peak Reflow Temperature-Max (s)
  • 20
  • Pin Count
  • 8
  • JESD-30 Code
  • R-PDSO-G8
  • Qualification Status
  • Not Qualified
  • Output Type
  • CMOS, Rail-to-Rail, TTL
  • Number of Elements
  • 1
  • Power Supplies
  • +-5V
  • Response Time
  • 7 ns
  • Voltage - Supply, Single/Dual (±)
  • 2.7V~6V
  • Neg Supply Voltage-Nom (Vsup)
  • -5V
  • Supply Voltage Limit-Max
  • 6V
  • Neg Supply Voltage-Max (Vsup)
  • -6V
  • Current - Quiescent (Max)
  • 9mA
  • Voltage - Input Offset (Max)
  • 2.5mV @ ±5V
  • Current - Input Bias (Max)
  • 6?A @ ±5V
  • Hysteresis
  • 7mV
  • CMRR, PSRR (Typ)
  • 70dB CMRR, 80dB PSRR
  • Current - Output (Typ)
  • 20mA
  • Propagation Delay (Max)
  • 13ns
  • Length
  • 4.9025mm
  • Width
  • 3.899mm
  • RoHS Status
  • RoHS Compliant

Download datasheets and manufacturer documentation for ADI LT1719IS8.

Datasheets:

LT1719IS8 Overview


In order to make transportation easier, it is packaged in 8-SOIC (0.154, 3.90mm Width) .A comparator with an output type of CMOS, Rail-to-Rail, TTL is being used.We ship the part through Tube .As you can see, the comparator has8 terminals.Electronic comparator is a part of Comparator family.Electronic comparator is capable of performing numerous tasks when powered by 5V voltage.In general, the chip type can be classified as General Purpose .A total of 1 elements can be found in it.A total of 8 pins are included.A Surface Mount mounting type is recommended.A temperature setting of -40°C~85°C should be used for the operating temperature in order to prevent malfunctions.Alternatively, you may search for LT1719 to find more pin-to-pin solutions for your specific needs.The device can be run with +-5V power supplies.Comparator electronics is part of the UltraFast? comparator series.

LT1719IS8 Features


CMOS, Rail-to-Rail, TTL output capability
General Purpose IC
Employing 1 elements
Operates under -40°C~85°C


LT1719IS8 Applications


There are a lot of Linear Technology/Analog Devices
LT1719IS8 linear comparators applications.


  • Current and voltage sensing
  • Analog front end
  • Power management
  • Point of load regulators
  • DC/DC and AC/DC power supplies
  • System control and monitoring
  • Wearable Devices
  • Mobile Phones and Tablets
  • Battery-Powered Electronics
  • General Purpose Low Voltage Applications
