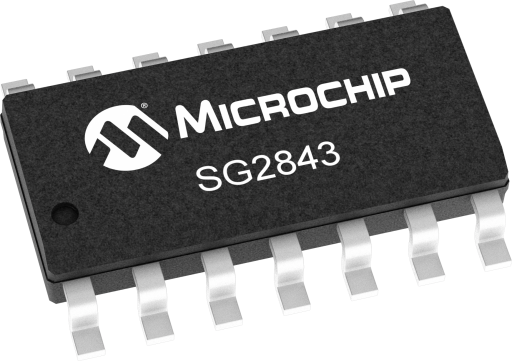

Microchip SG2843DM

Manufacturer No:

SG2843DM

Manufacturer:

Microchip

Package:

8-SOIC (0.154, 3.90mm Width)

Description:

Current Mode PWMs, High-Reliability Isolated Switching Regulators

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SG2843DM information

Microchip SG2843DM technical specifications, attributes, parameters and parts with similar specifications to Microchip SG2843DM.

Type
Parameter

Regulator Type
HI Rel Switching Regulators

Configuration
Current Mode PWMs

Supported Topology
Power MOSFET Driver

Supported Output
1

Minimum Input Voltage (V)
30

Maximum Input Voltage (V)
30

Output Current (mA) Max
1000

Maximum Frequency (kHz)
500

Operating Temperature Range (°C)
-25 to 85

Vref (V)
5

Duty Cycle Min (%)
0

Duty Cycle Max (%)
95

UVLO
Yes

Current Limit
Yes

Quiescent Current (mA) typ
0

Download datasheets and manufacturer documentation for Microchip SG2843DM.

Certifications:

06c0448947ba93fe51908db98a5a2dae.pdf

Application Notes:

6cb1420f5410e66cf929a3bce1773e3b.pdf

The SG1842/43 family of control IC's provides all the necessary features to implement off-line fixed frequency, current-mode switching power supplies with a minimum number of external components.
Current-mode architecture demonstrates improved line regulation, improved load regulation, pulse-by-pulse current limiting and inherent protection of the power supply output switch. The band-gap reference is trimmed to ±1% over temperature.
Oscillator discharge current is trimmed to less than ±10%. The SG1842/43 has under-voltage lockout, current limiting circuitry and start-up current of less than 1mA. The totem-pole output is optimized to drive the gate of a power MOSFET. The output is low in the off state to provide direct interface to an N-channel device. The SG1842/43 is specified for operation over the full military ambient temperature range of -55°C to 125°C. The SG2842/43 is specified for the industrial range of -25°C to 85°C, and the SG3842/43 is designed for the commercial range of 0°C to 70°C.

Optimized For Off-Line Control
Low Start-Up Current (<1mA)
Automatic Feed Forward Compensation
Trimmed Oscillator Discharge Current
Pulse-By-Pulse Current Limiting
Enhanced Load Response Characteristics -
Double-Pulse Suppression
High-Current Totem-Pole Output (1A Peak)
Internally Trimmed Band-gap Reference
500kHz Operation Under-voltage Lockout: SG1843 - 8.4 volts
Low Shoot-Through Current <75mA Over Temperature
