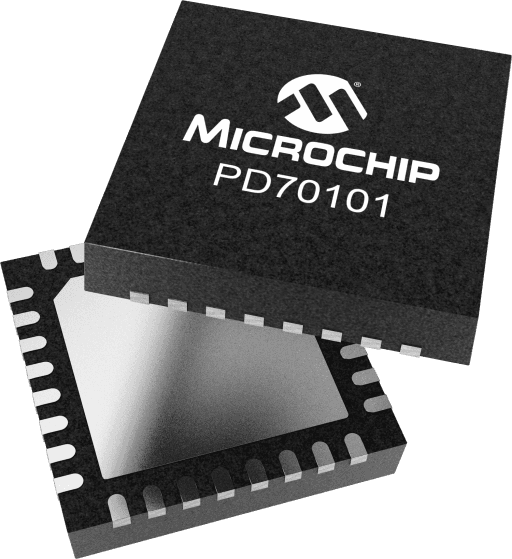

Microchip PD70101ILQ-TR
Manufacturer No:
PD70101ILQ-TR
Manufacturer:
Microchip
Package:
32-VFQFN Exposed Pad
Description:
PoE PD IC
Quantity:
In Stock :3701
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Thu, May 28 - Fri, May 29, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
PURCHASE
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
SHIPPING COST
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
PD70101ILQ-TR Information
Microchip PD70101ILQ-TR technical specifications, attributes, parameters and parts with similar specifications to Microchip PD70101ILQ-TR.
- Type
- Parameter
- Product Type
- PD IC
- Standards Supported
- IEEE 802.3af
- IC Type
- PD front end + PWM controller
- POE Type
- AF Type 1
- PoE Class
- 1-3
- Output Power
- 15.4W
- Maximum Current
- 0.45A
- Maximum Channel Resistance
- 0.6 Ohm
- Operating Temperature (C)
- –40 to 85
- Temperature Grade
- Industrial
- Type
- Parameter
- Integrated PWM Controller
- Yes
Download datasheets and manufacturer documentation for Microchip PD70101ILQ-TR.
Data Sheets:
The PD70101 is an integrated Powered Device (PD) Interface and PWM controllers for a DC-DC converter used in IEEE 802.3af applications. The PD70101 can be used for IEEE 802.3af Type 1 applications. The device has several features designed to improve efficiency and reliability:
- Capacitor
- Gate drivers
- Peak current mode control
- Maximum duty cycle
- Soft-start circuit
- Low voltage protection warning and monitoring
Start your PoE PD power supply design using Microchip MPLAB® Analog Designer.
- IEEE 802.3af Type 1 compliant
- Less than 10 µA (typical) offset current during detection
- Signature resistor is disconnected upon detection
- Programmable classification setting with a single resistor
- Integrated 0.6 Ohm isolating MOSFET switch with inrush current limit
- Power off DC-DC input capacitor discharge
- 100 kHz to 500 kHz adjustable DC-DC switching frequency
- DC-DC frequency can be synchronized to external clock
- Supports low power mode operation for higher efficiency
- Up to 50% duty cycle
- Soft-start circuit to control the output voltage rise time
- Two out-of-phase driver stages for efficient synchronous rectification or active clamp
- PoE Port Input UVLO with programmable threshold and hysteresis
- Internal differential amplifier simplifying non-isolated step down converter
- Over load and short circuit protection
- 32-pin, 5mm × 5mm QFN
- MSL3, RoHS compliant
