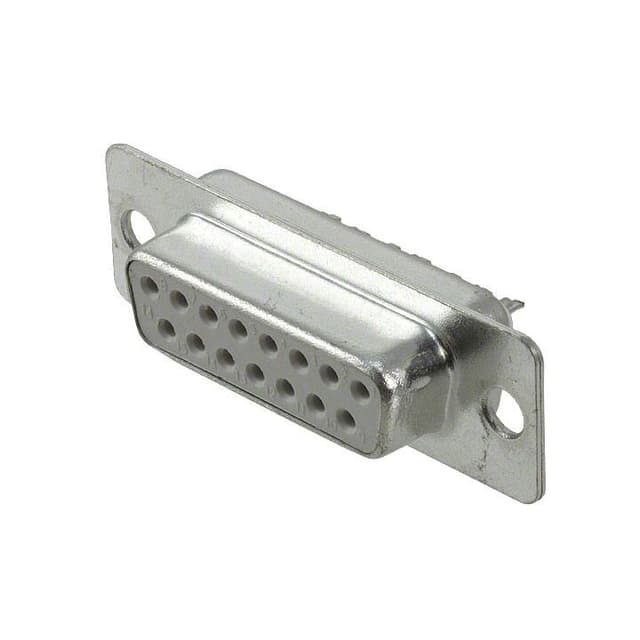

Sullins Connector Solutions SDS100-PRW2-F15-SN00-6

Manufacturer No:

SDS100-PRW2-F15-SN00-6

Manufacturer:

Package:

Description:

100 Series D-Sub Receptacle, Female Sockets 15-Position Signal Solder Cup 2 DA A Free Hanging (In-Line) Brass Gold Steel, Tin Plated

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

SDS100-PRW2-F15-SN00-6 information

Sullins Connector Solutions SDS100-PRW2-F15-SN00-6 technical specifications, attributes, parameters and parts with similar specifications to Sullins Connector Solutions SDS100-PRW2-F15-SN00-6.

Type
Parameter

Contact Material
Brass

Mount
Free Hanging

Mounting Type
Free Hanging (In-Line)

Dielectric Material
Polybutylene Terephthalate (PBT), Glass Filled

Housing Material
PBT

Shell Material, Finish
Steel, Tin Plated

Operating Temperature
-55°C~105°C

Packaging
Tray

Series
100

Published
2012

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Termination
Solder Cup

Connector Type
Receptacle, Female Sockets

Number of Positions
15

Color
White

Number of Rows
2

Voltage - Rated
250V

Subcategory
D Type Connectors

Contact Type
Signal

Total Number of Contacts
15

Current Rating
3A

Shell Finish
TIN OVER COPPER

Reference Standard
UL

Reliability
COMMERCIAL

Body Length or Diameter
1.543 inch

Body Breadth
0.494 inch

Rated Current (Signal)
3A

Wire Gauge
22 AWG

Flange Feature
Housing/Shell (Unthreaded)

Mating Contact Pitch
0.109 inch

Dielectric Withstanding Voltage
1400VAC V

Connector Style
D-Sub

Contact Form
Stamped

Shell Size, Connector Layout
2 DA A

Contact Design
PREASSEM CONN

Contact Finish Thickness
Flash

Material Flammability Rating
UL94 V-0

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Sullins Connector Solutions SDS100-PRW2-F15-SN00-6.

Datasheets:

sullinsconnectorsolutions-sds100prw2f50sn001-datasheets-4394.pdf

Environmental Information:

sullinsconnectorsolutions-wct001mct-environmentalinformation-6146.pdf

SDS100-PRW2-F15-SN00-6 Overview

This product is packaged in a Receptacle, Female Sockets carton.It's mounted Free Hanging (In-Line).We use a Tray case to package the product.It's from the 100 Series.It's mounted by Free Hanging.-55°C~105°C Operating Temperature is what the device runs at.

SDS100-PRW2-F15-SN00-6 Features

100 series

SDS100-PRW2-F15-SN00-6 Applications

There are a lot of Sullins Connector Solutions
SDS100-PRW2-F15-SN00-6 D-Sub Connectors applications.

Transportation
Embedded systems
Datacom
Communication
Medical technology
Military Technology
Measuring & Control Technology
Instrumentation
Automotive Electronics
Telecommunications
