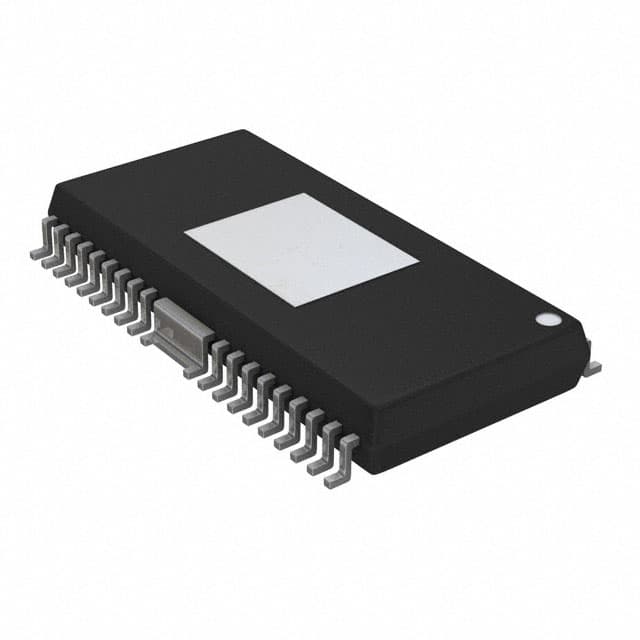

ONSEMI LB11693H-MPB-E

Manufacturer No:

LB11693H-MPB-E

Manufacturer:

ONSEMI

Package:

36-SOP (0.311, 7.90mm Width) Exposed Pad + 2 Heat Tabs

Description:

7.9mm mm Motor Drivers 36 24V V 5.3V V 17.8mm mm Motion Control Electronics

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

LB11693H-MPB-E information

ONSEMI LB11693H-MPB-E technical specifications, attributes, parameters and parts with similar specifications to ONSEMI LB11693H-MPB-E.

Type
Parameter

Lifecycle Status
OBSOLETE (Last Updated: 3 days ago)

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
36-SOP (0.311, 7.90mm Width) Exposed Pad + 2 Heat Tabs

Number of Pins
36

Operating Temperature
-30°C~100°C TA

Packaging
Tube

Published
2006

JESD-609 Code
e6

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
36

Terminal Finish
Tin/Bismuth (Sn/Bi)

Applications
General Purpose

HTS Code
8542.39.00.01

Subcategory
Motion Control Electronics

Technology
BIPOLAR

Voltage - Supply
9.5V~28V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
NOT SPECIFIED

Supply Voltage
24V

Terminal Pitch
0.8mm

Function
Driver - Fully Integrated, Control and Power Stage

Qualification Status
Not Qualified

Output Voltage
5.3V

Supply Voltage-Max (Vsup)
28V

Power Supplies
24V

Supply Voltage-Min (Vsup)
9.5V

Interface
PWM

Analog IC - Other Type
BRUSHLESS DC MOTOR CONTROLLER

Output Configuration
Half Bridge (3)

Power Dissipation
900mW

Current - Output
1.8A

Logic Function
AND

Supply Current-Max (Isup)
13.5mA

Voltage - Load
9.5V~28V

Motor Type - AC, DC
Brushless DC (BLDC)

Length
17.8mm

Height Seated (Max)
2.45mm

Width
7.9mm

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for ONSEMI LB11693H-MPB-E.

Datasheets:

onsemiconductor-lb11693htlme-datasheets-3855.pdf

onsemiconductor-lb11693hmpbe-datasheets-0672.pdf

LB11693H-MPB-E Overview

Drivers controllers is designed wDrivers controllersh a package of [0].A 36-SOP (0.311, 7.90mm Width) Exposed Pad + 2 Heat Tabscase is included with the part.Ideally, the part should be mounted by Surface Mount.This component is suitable for the component connected to General Purpose.Drivers controllers is capable of supplying 9.5V~28V volts.This device operates at a temperature range of -30°C~100°C TA.Drivers controllers is possible to categorize the motor type as Brushless DC (BLDC).This part offers 36terminations.Drivers controllers is possible to apply voltage to the load at the rate of 9.5V~28V.Drivers controllers is important to remember that this amplifier should be run at 24V.A Surface Mountmounting method is recommended for this product.Set the part's output current to 1.8A.In this device, the analog IC BRUSHLESS DC MOTOR CONTROLLERis employed.This device is designed with a pin count of 36.Drivers controllers is part of the series [0].In this case, the output voltage is maintained at 5.3V.

LB11693H-MPB-E Features

Applications : General Purpose
Load voltage across the chip 9.5V~28V

LB11693H-MPB-E Applications

There are a lot of ON Semiconductor
LB11693H-MPB-E motor drivers applications.

Large outdoor LED display
Commercial office
Hospitality buildings
Smart lighting applications
Automotive applications
Dome
Dash
Footwell lighting
Indicator
Telltale lights
